500kg Electric Chain Hoist 415V 2 Speed Beam Trolley Pendant 3.5m Lift

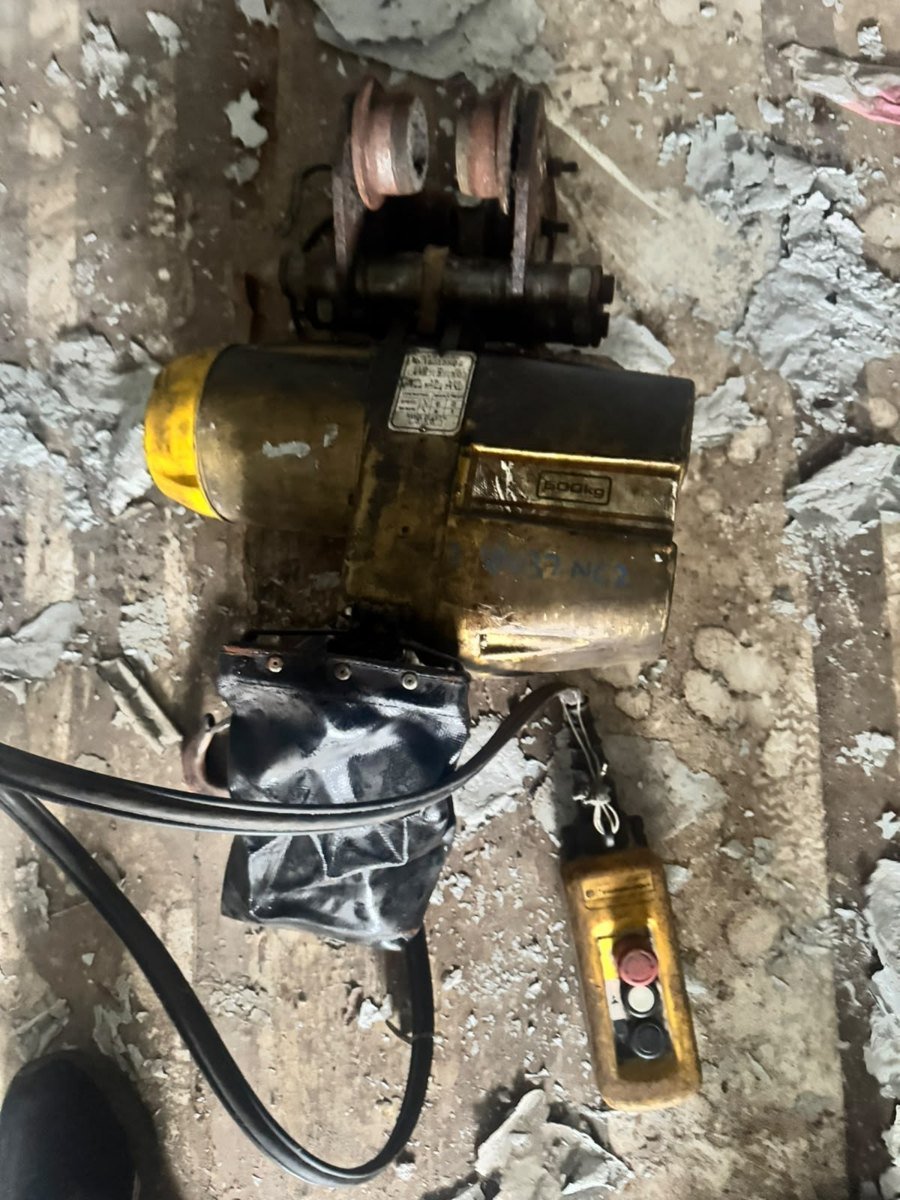

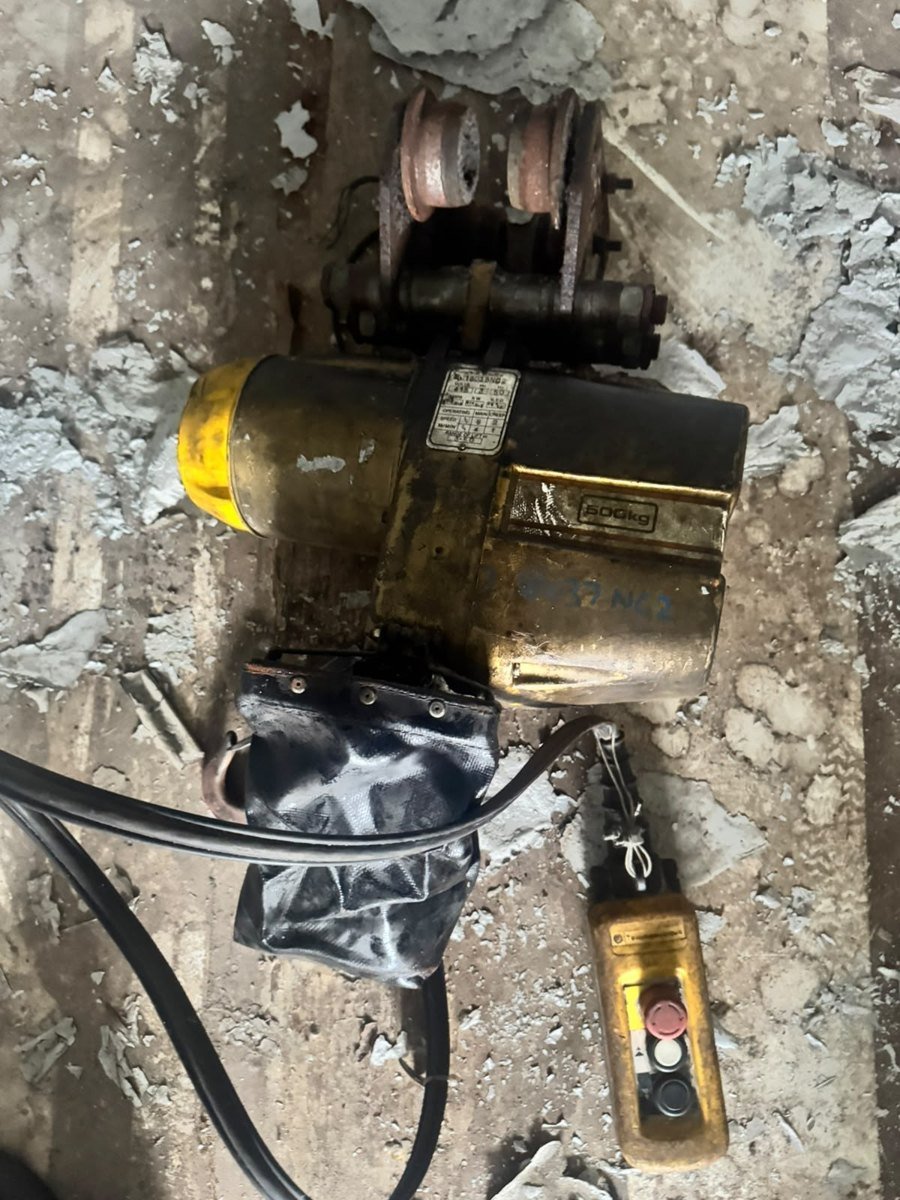

500kg industrial electric chain hoist with manual beam trolley, two-speed lifting, yellow pendant control and black chain collection bag.

Working used equipment supplied with the components pictured.

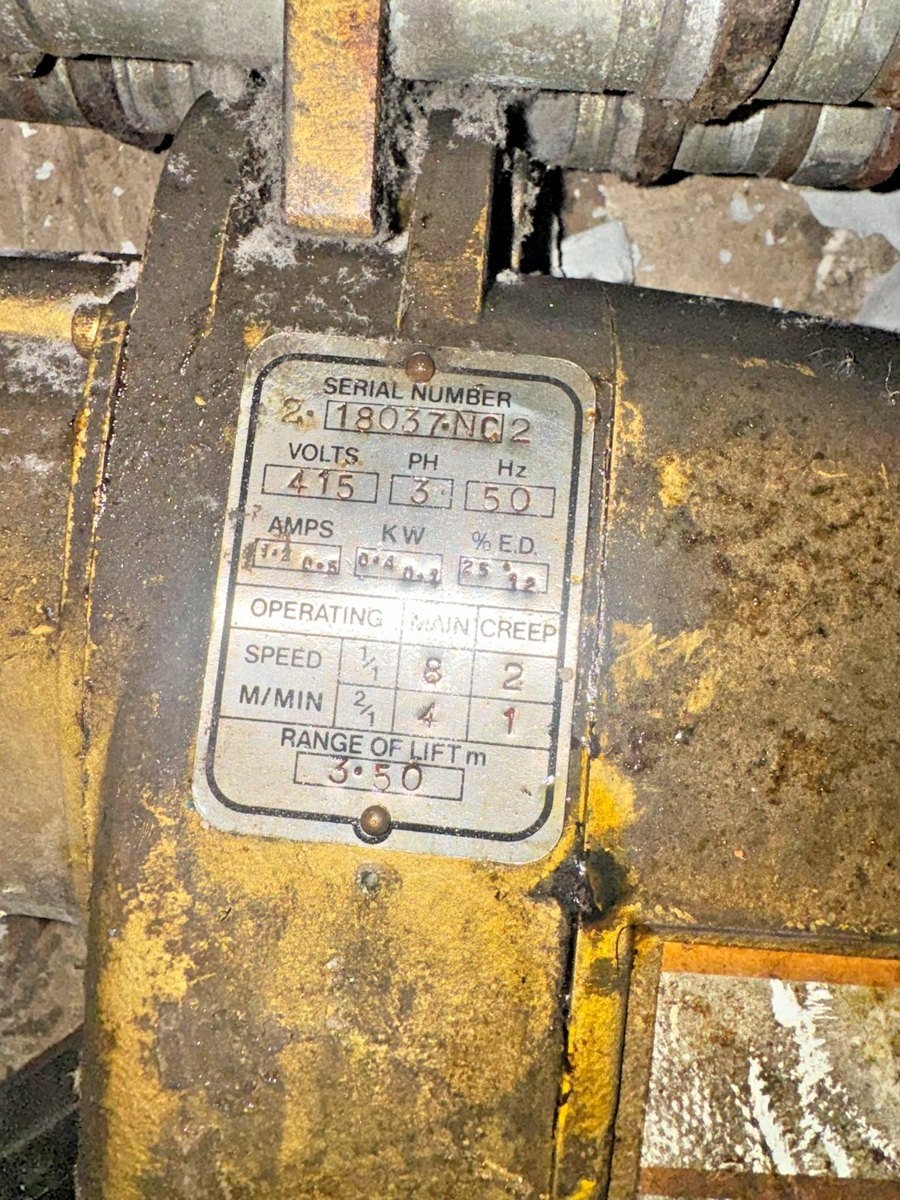

Specifications from the plate

Rated capacity marking: 500kg

Supply: 415V, three phase, 50Hz

Double-fall lifting speeds, 2/1: 4 / 1 metres per minute

Alternative single-fall speed markings, 1/1: 8 / 2 metres per minute

Motor power markings: 0.4 / 0.1kW

Plate range of lift: 3.50 metres; actual travel has not been measured

Serial number appears to read: 18037NC2

Trolley: manual push travel

Trolley beam-width range: not measured

Manufacturer and manufacture year: not confirmed

Included

500kg electric chain hoist

Attached manual beam trolley

Chain collection bag

Yellow raise/lower pendant with emergency stop

Attached cables pictured

Condition

The hoist functions and works. It has substantial signs of industrial use, including dirt, paint loss, scratches and visible corrosion, particularly on the trolley wheels, suspension fittings and casing.

T

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish certified lifting condition or suitability for immediate lifting service.

Before lifting use, a competent person should inspect the hoist and trolley, check the chain, hook, suspension and corrosion, secure the cable connections and complete appropriate electrical checks and examination.
