Demag DKM 1-125 125kg Electric Chain Hoist 415V Trolley & Control See Descriptio

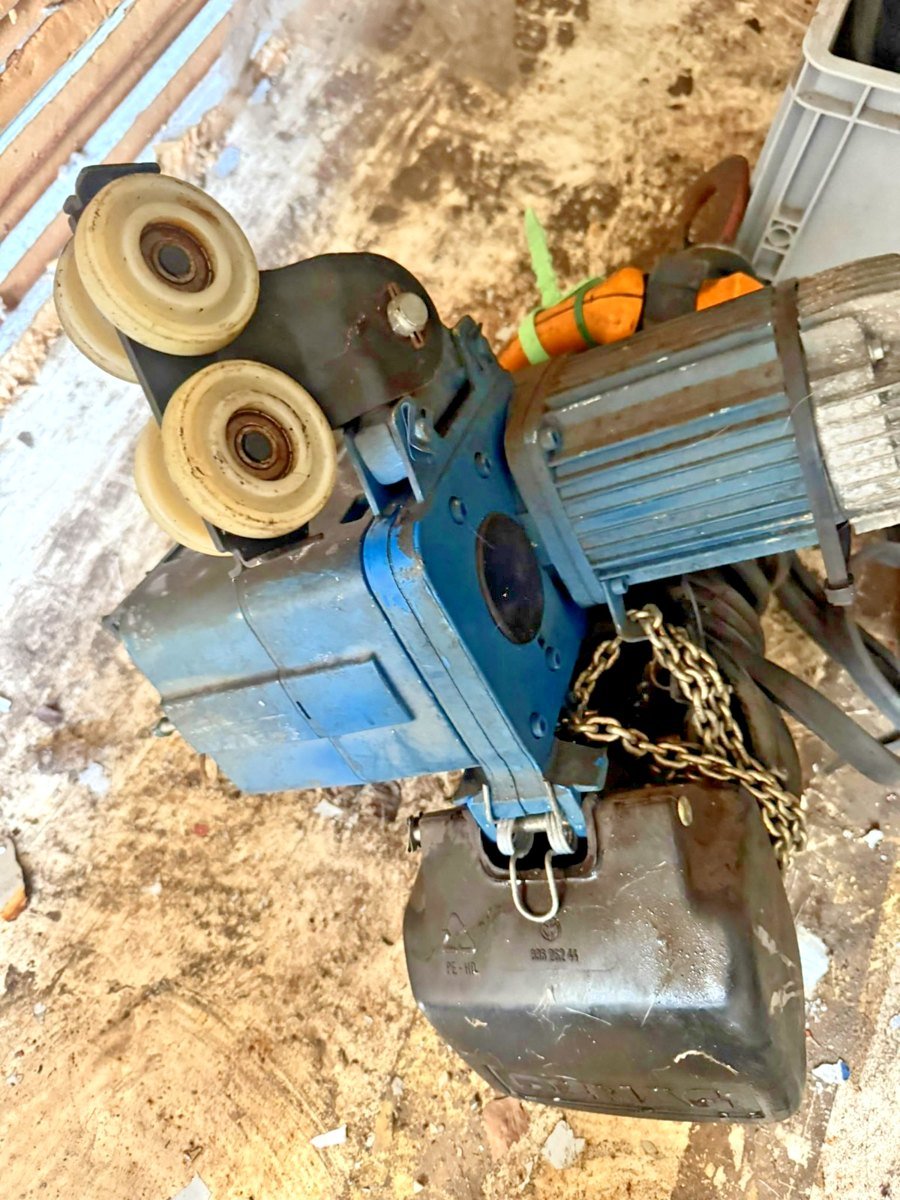

Mannesmann Dematic / Demag DKM 1-125 electric chain hoist with trolley, chain container and Demag DSM5-S hook-mounted control.

Functioning equipment, with two lifting speeds for general lifting and slower positioning. Manufactured in Germany in 2001.

Specifications from the manufacturer’s plate

Model: DKM 1-125 K V1 F4

Safe working load: 125kg

Chain arrangement: 1/1, single fall

Hook travel: 2.8 metres

Main lifting speed: 8 metres/minute

Creep lifting speed: 2 metres/minute

Supply: 415V, three phase, 50Hz

Motor power: 0.25 / 0.06kW

Motor speed: 2700 / 660rpm

FEM classification: 2m

Duty factor: 40 / 20%

Insulation class: F

Hoist protection rating: IP55

Chain: 3.6 × 10.6, 8DK

Serial number: 61254704

Year of manufacture: 2001

DSM5-S control marked IP65

Protection ratings above are manufacturer’s specifications; the electrical enclosure is currently open as pictured.

Condition

The hoist functions and works. It has used cosmetic condition, including scratches, chipped paint, dirt and surface corrosion around the hook and trolley wheel centres.

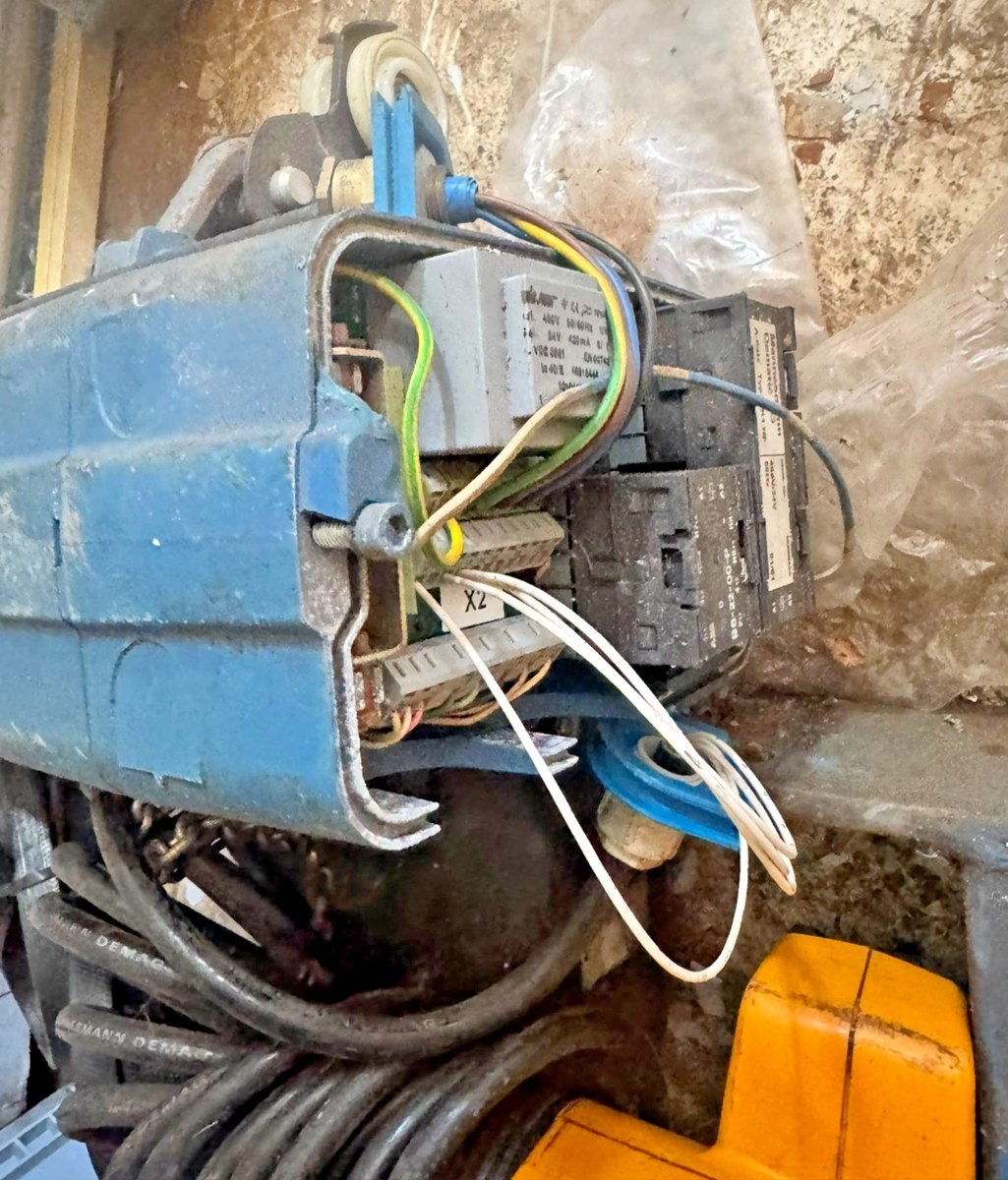

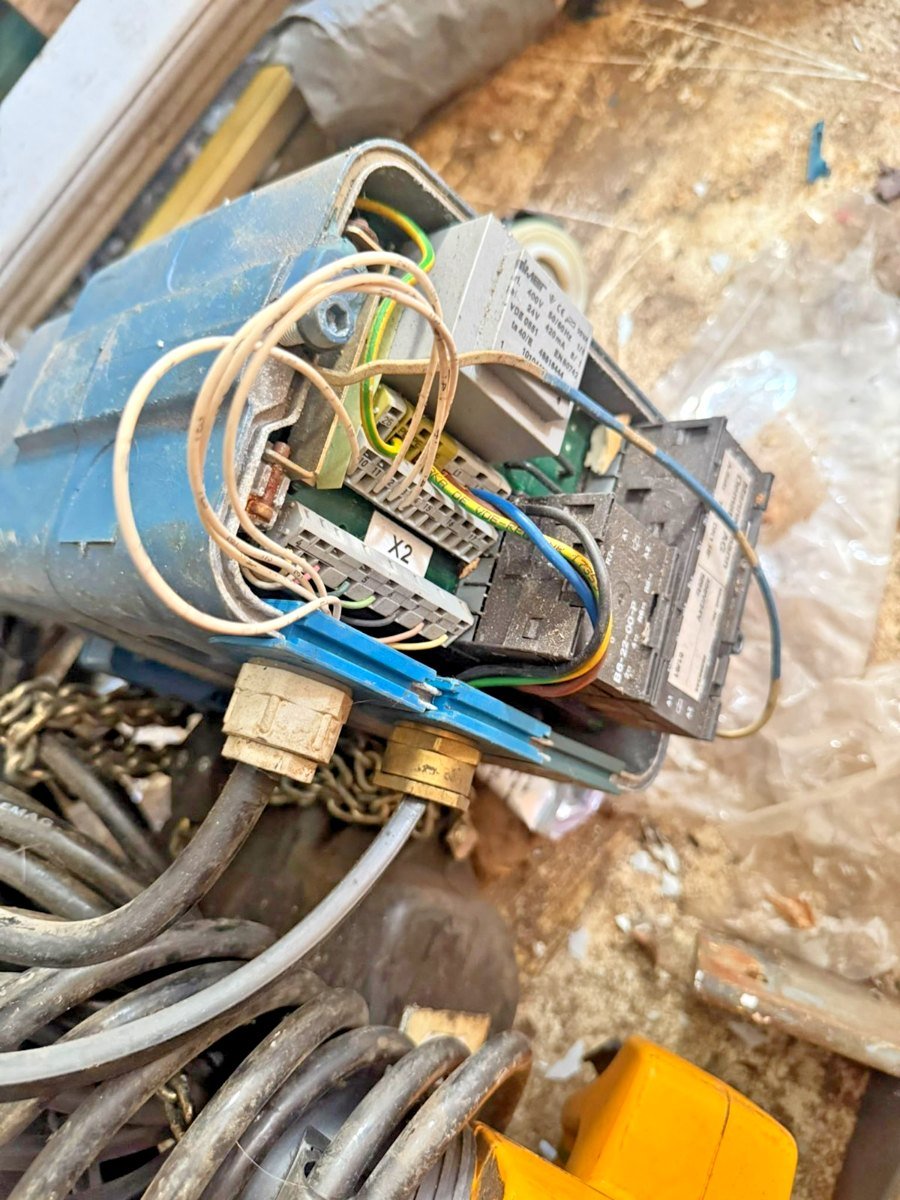

The electrical compartment is open, with internal components and wiring exposed. The casing around the cable-entry area is damaged, and the cable-entry plate is displaced. No electrical compartment cover is shown or included.

These condition details form part of the sale. The unit requires inspection and the electrical enclosure and cable entry to be made secure before being put into service.

Included

Demag 125kg hoist

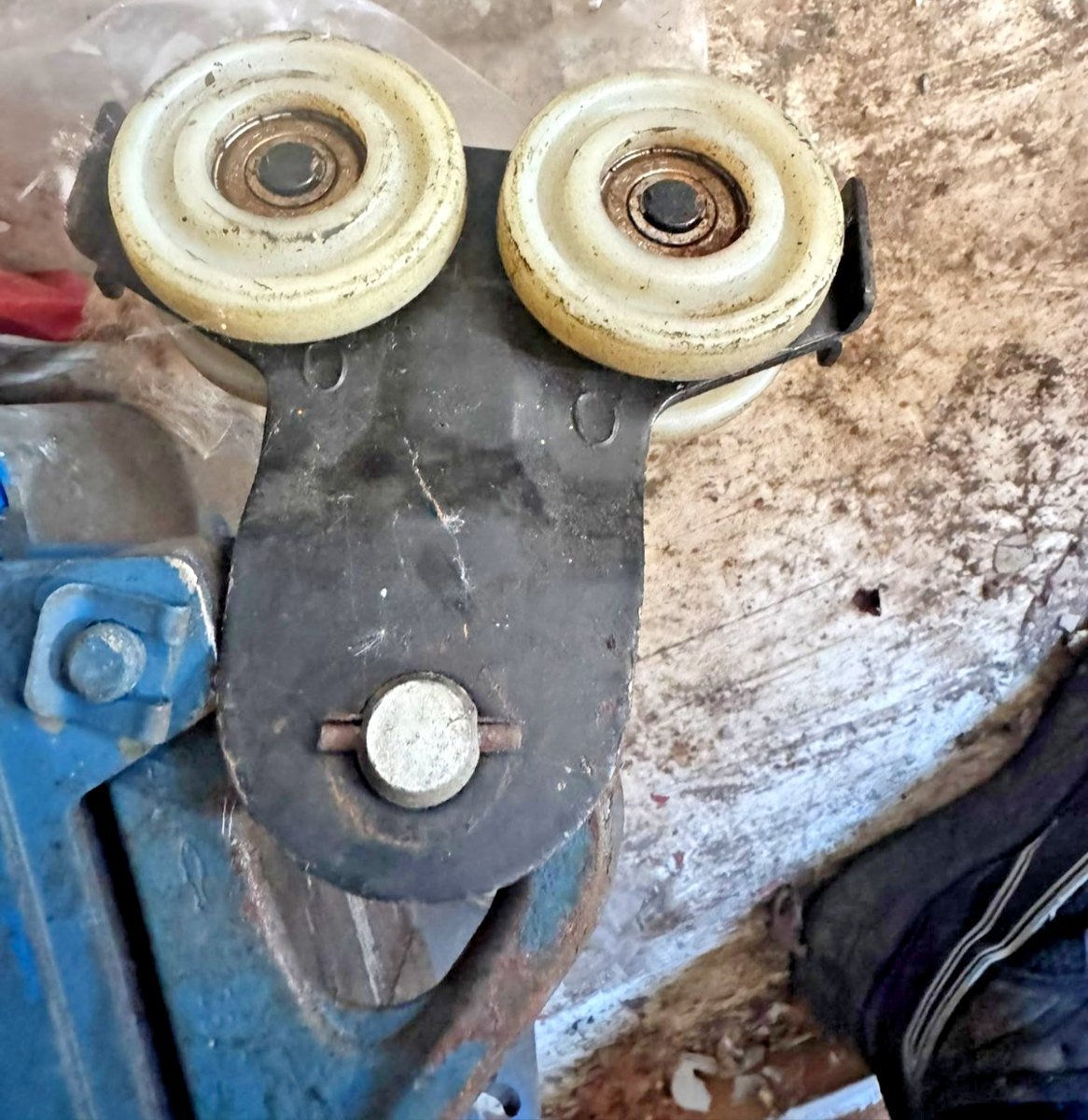

Trolley assembly pictured

Lifting chain and bottom hook

Demag DSM5-S control and attached cables

Chain container pictured

Only the listed equipment is included. Other items in the background are excluded.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish examination status or suitability for service. A competent person should inspect the equipment and complete the necessary examination and electrical checks before use.
