Demag Junior PK2NF 500kg Electric Chain Hoist 415V 3 Phase Working No LOLER

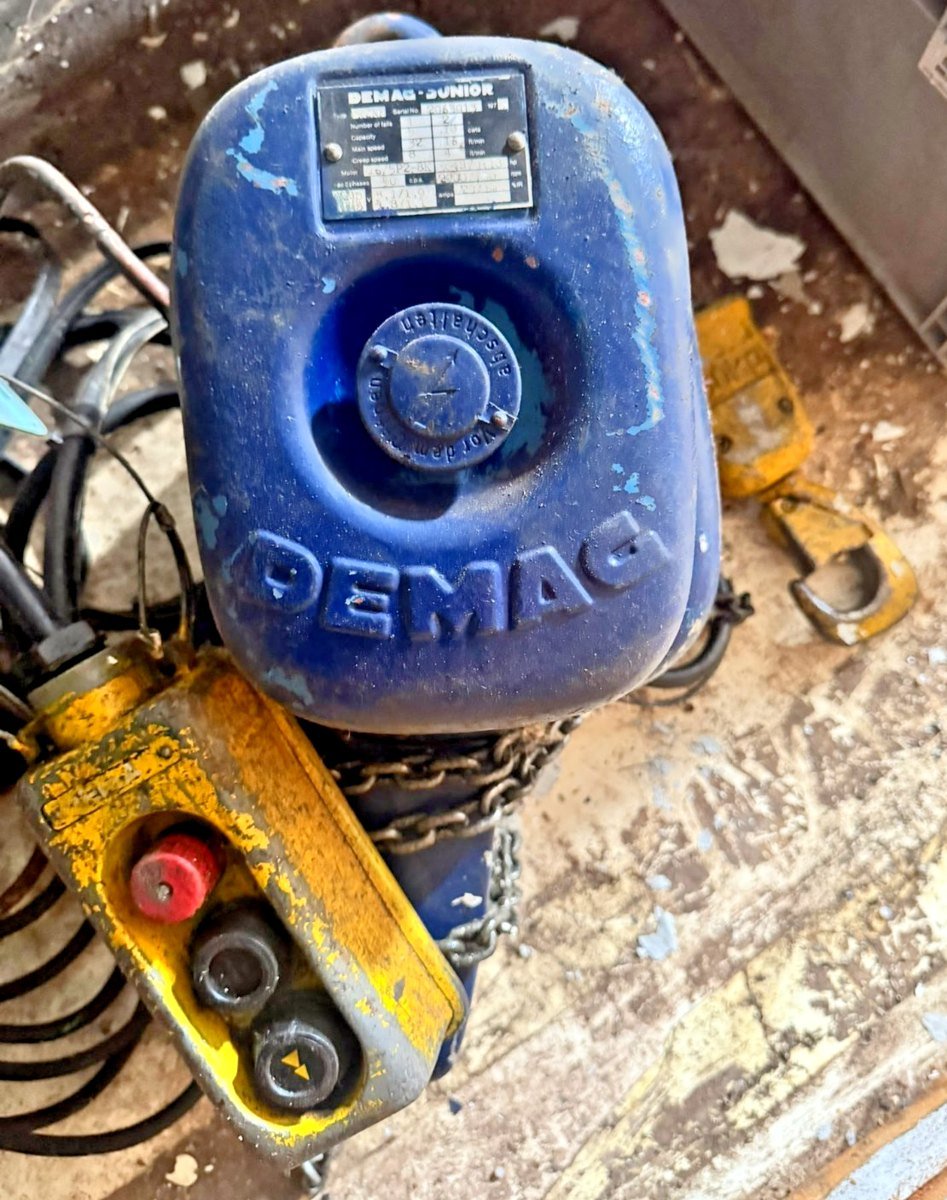

Demag Junior PK2NF electric chain hoist in working order, supplied with the pictured pendant control, load chain, yellow bottom hook block and chain container.

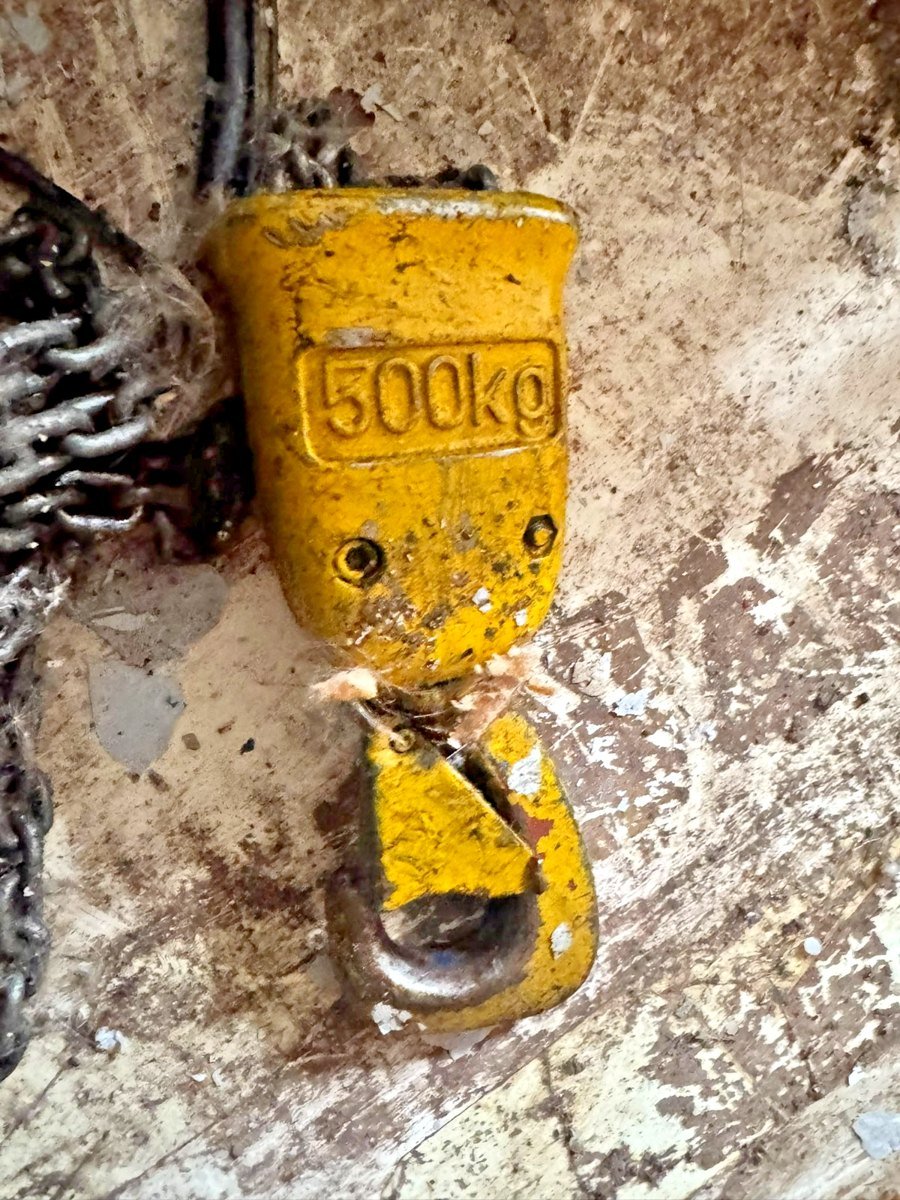

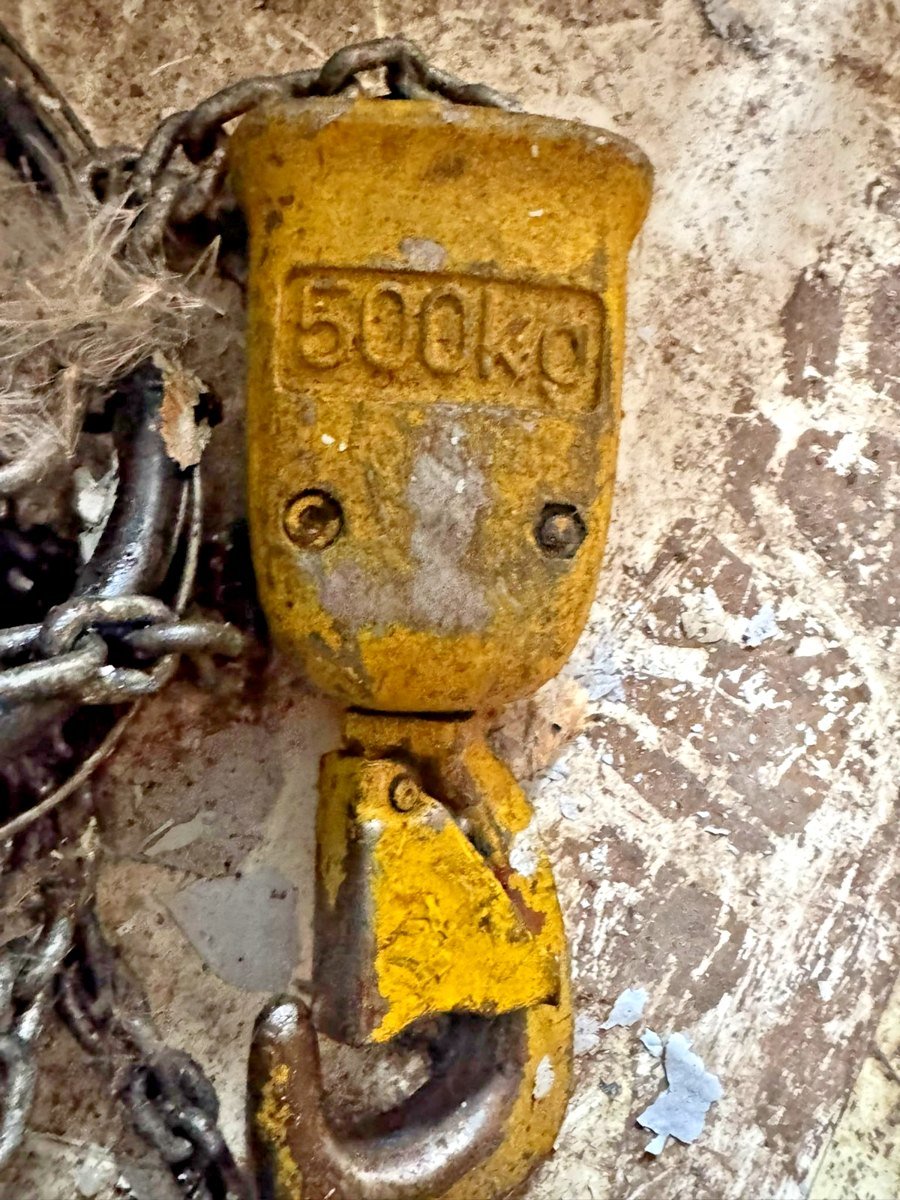

Two-speed lifting provides main and fine movement for controlled load positioning. The bottom hook block is marked 500kg .

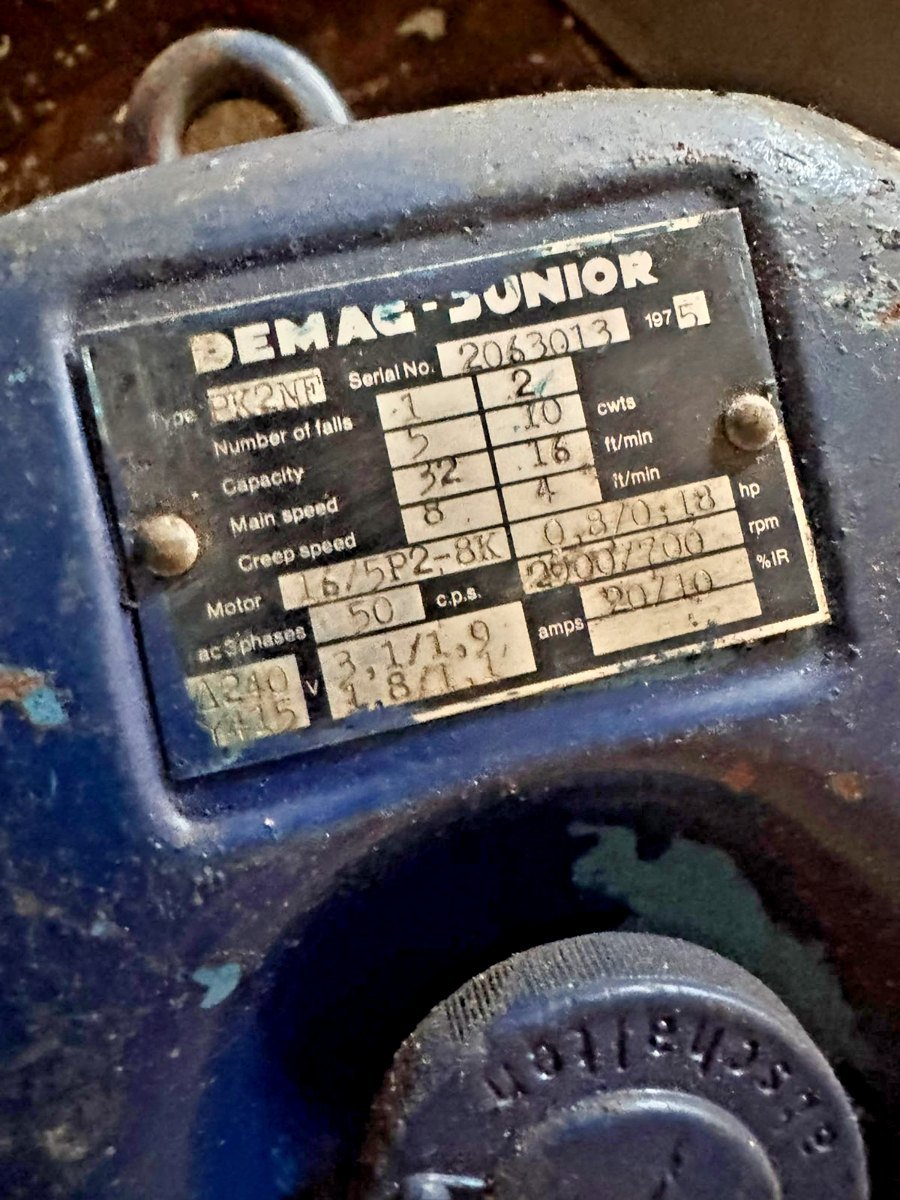

Specifications from the manufacturer’s plate

Manufacturer: Demag

Model: Junior PK2NF

Serial number: 2063013

Year of manufacture: 1975

Capacity markings: 5 cwt single fall / 10 cwt double fall

Main lifting speed: 32ft/min single fall / 16ft/min double fall

Fine lifting speed: 8ft/min single fall / 4ft/min double fall

Electrical supply: three-phase, 50Hz

Voltage markings: 240V / 415V

Motor output: 0.8 / 0.18hp

The original plate uses imperial capacity markings. The supplied hook block is marked 500kg; the applicable safe working load and fitted configuration should be confirmed during examination.

Lifting height and cable lengths have not been measured.

Condition

Working used condition with paint loss, scratches, dirt and visible rust, particularly on the hook. A hook safety latch is present, although its condition and operation have not been independently assessed.

Please review the photographs, including the close-ups of the hook, chain and identification plate.

Certification

No current LOLER thorough examination report or certification is supplied. A competent person should examine the equipment before it is put into lifting service.
