Demag PK Series 125kg Electric Chain Hoist 415V 3 Phase Working No LOLER

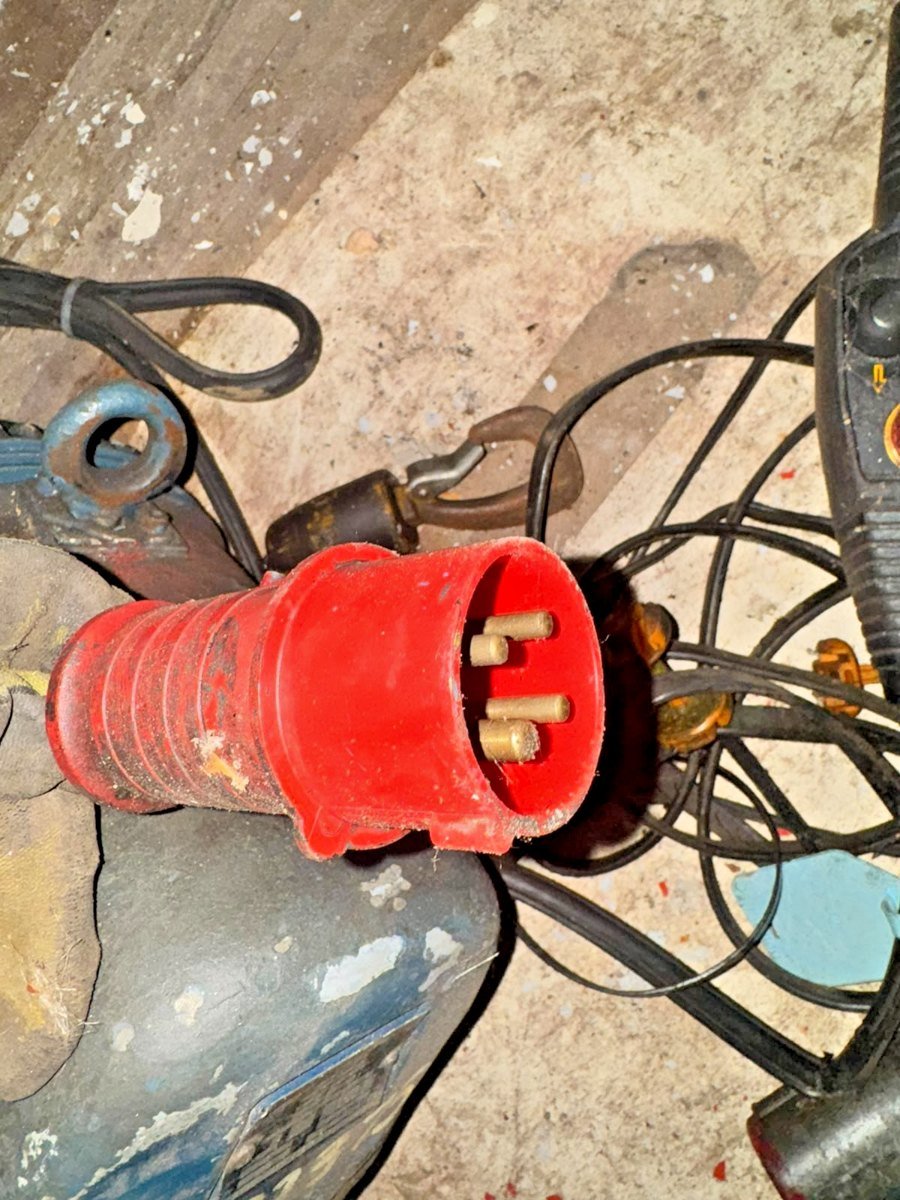

Mannesmann Demag 125kg electric chain hoist, in working order, supplied with the pictured pendant control, load chain, bottom hook, chain container and electrical leads.

Compact industrial hoist with main and fine lifting speeds for controlled positioning.

Specifications from the identification plate

Manufacturer: Mannesmann Demag

Safe working load: 125kg

Reeving: 1/1, single fall

Main lifting speed: 8m/min

Fine lifting speed: 2m/min

Motor output: 0.2kW

Supply: three-phase, 50Hz

Voltage markings: 240V delta / 415V star

Insulation class: F

Duty rating: 40%

Lifting height and cable lengths have not been measured. Please confirm electrical compatibility before installation.

Condition

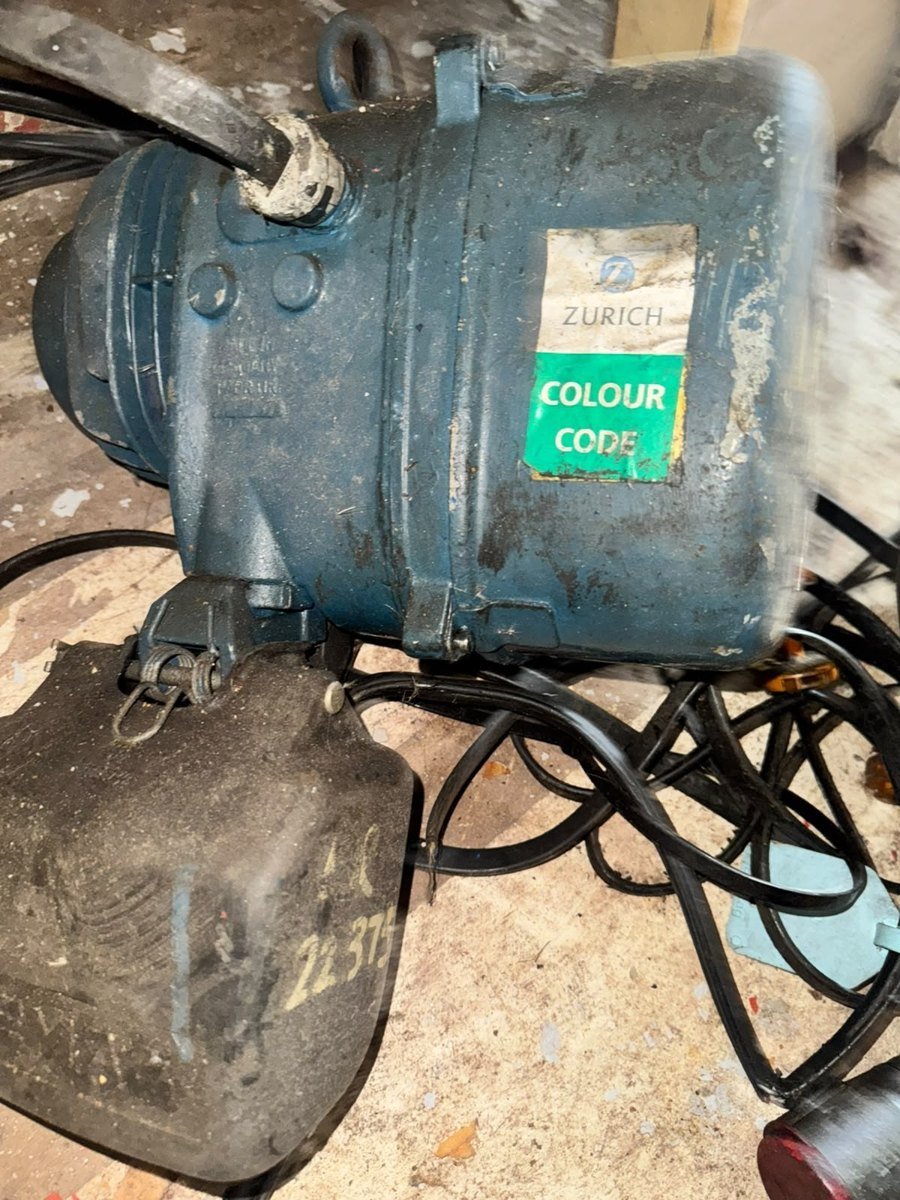

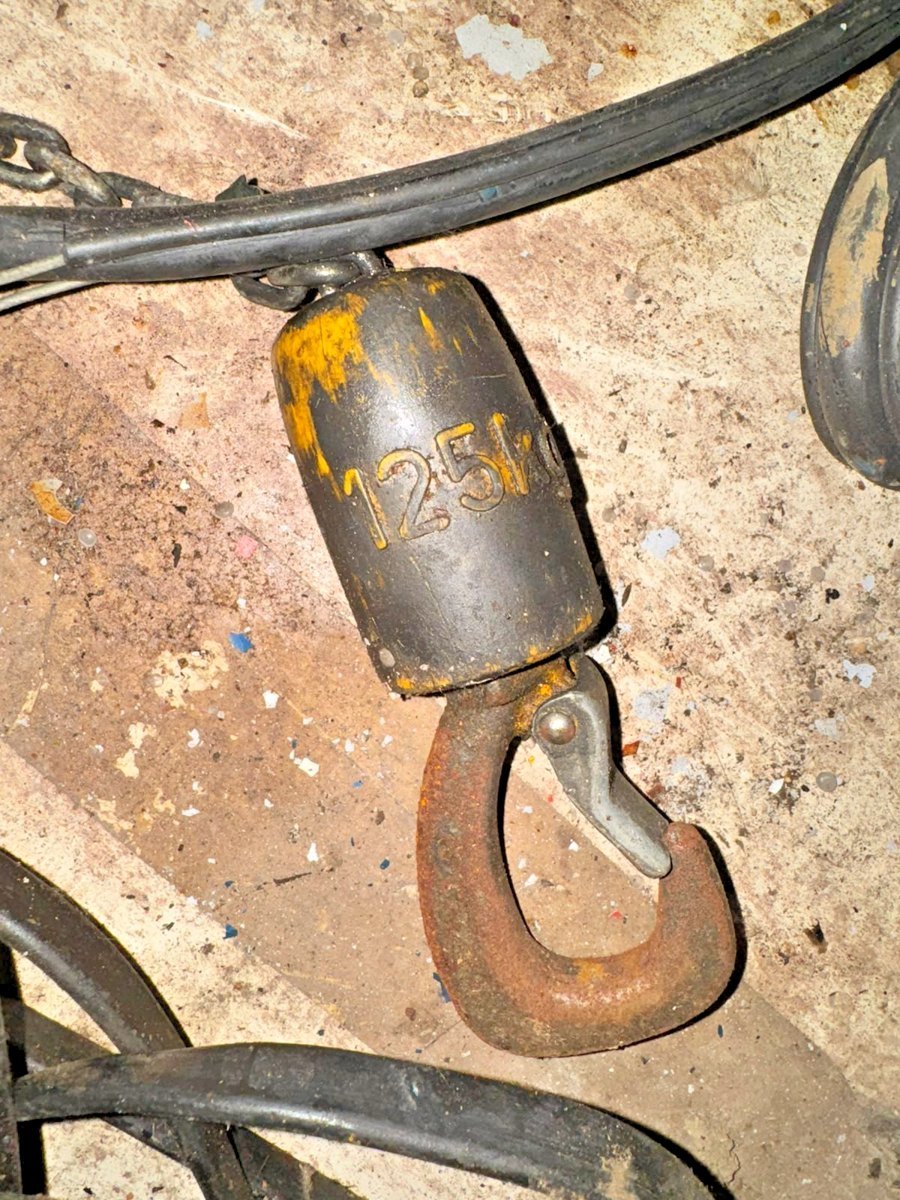

Working used condition, with paint loss, scratches, dirt and surface rust, including on the bottom hook.

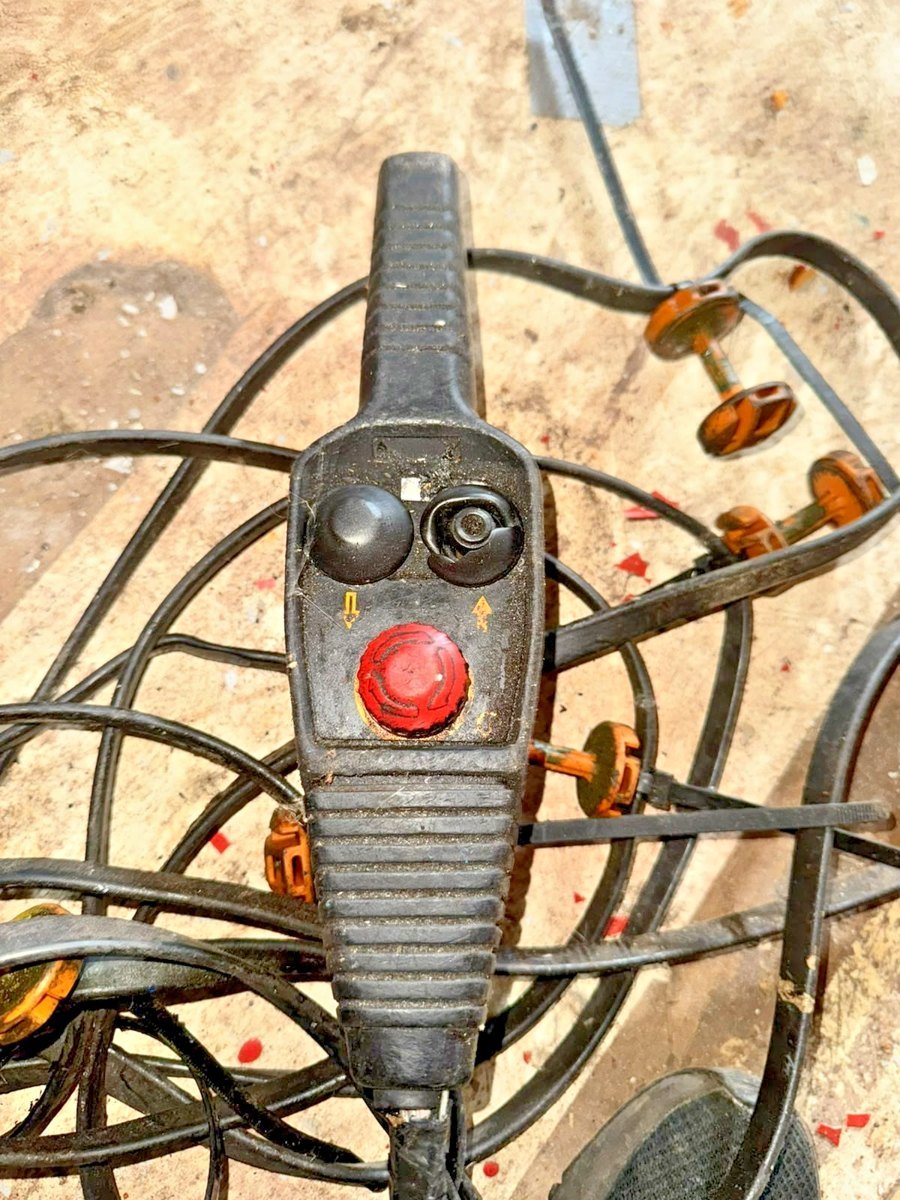

One pendant push-button cap is missing, exposing the button mechanism. Fraying/deterioration is visible around the cable entry into the hoist. These areas require assessment before use; please see the close-up photographs.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish inspection status. A competent person should examine the hoist, including the pendant and cable entry, before it is put into lifting service.
