Konecranes CLX05 500kg Electric Chain Hoist 400V 2 Speed Trolley & Pendant

Konecranes CLX05 industrial electric chain hoist with 500kg capacity, manual beam trolley and pendant control. Working used equipment with two lifting speeds for lifting and precise positioning.

Specifications from the manufacturer’s plate

Type: CLX05C081050

Capacity: 500kg

Chain arrangement: single fall, 1/1

Lifting speeds: 8 / 1.3 metres per minute

Supply: 400V, three phase, 50Hz

Motor power: 0.9 / 0.15kW

ISO classification: M5

Protection rating: IP55

Chain specification: 5 × 14 T

Serial number: 1530106974

Plate date: 7 September 2015

Actual lifting height and trolley beam-width range: not measured 3m approx

Included

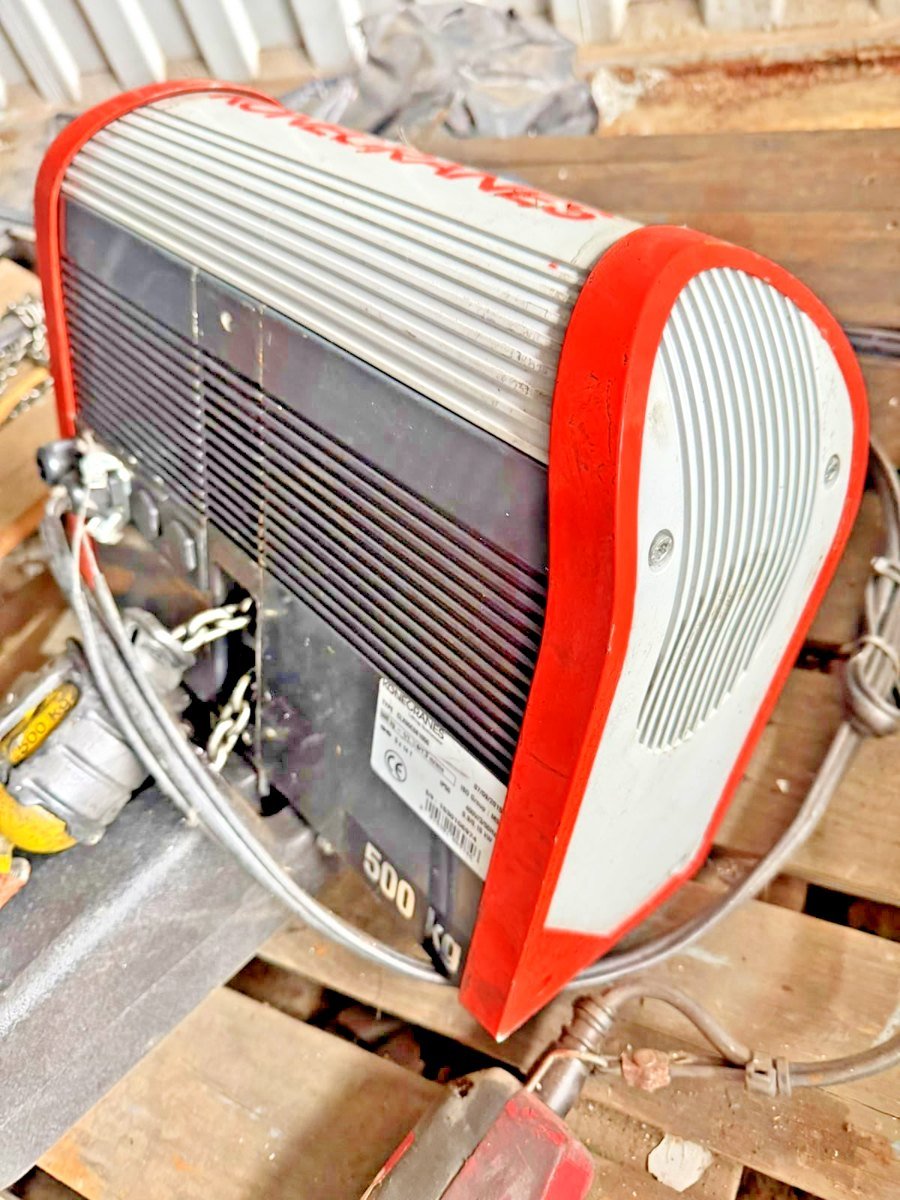

Konecranes 500kg electric chain hoist

Manual beam trolley pictured

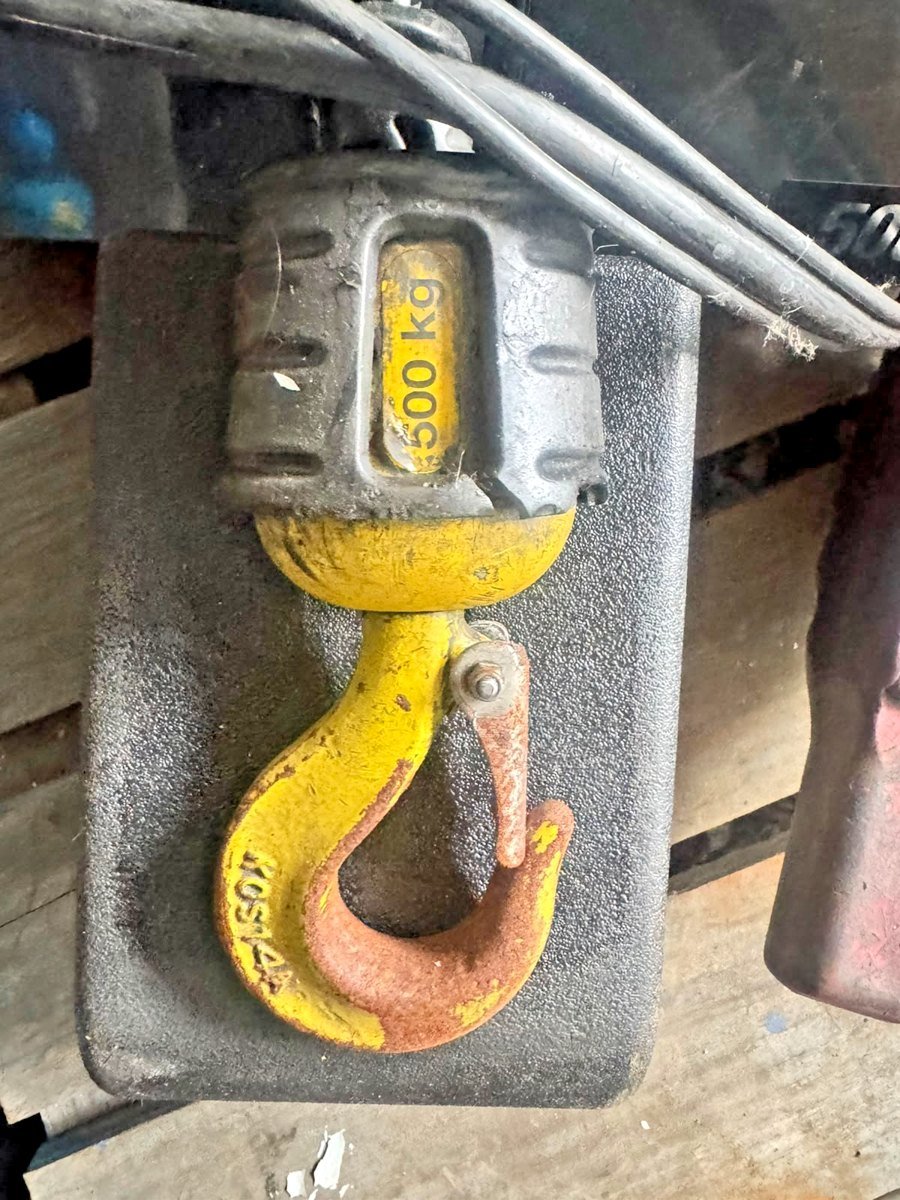

Lifting chain and 500kg hook block

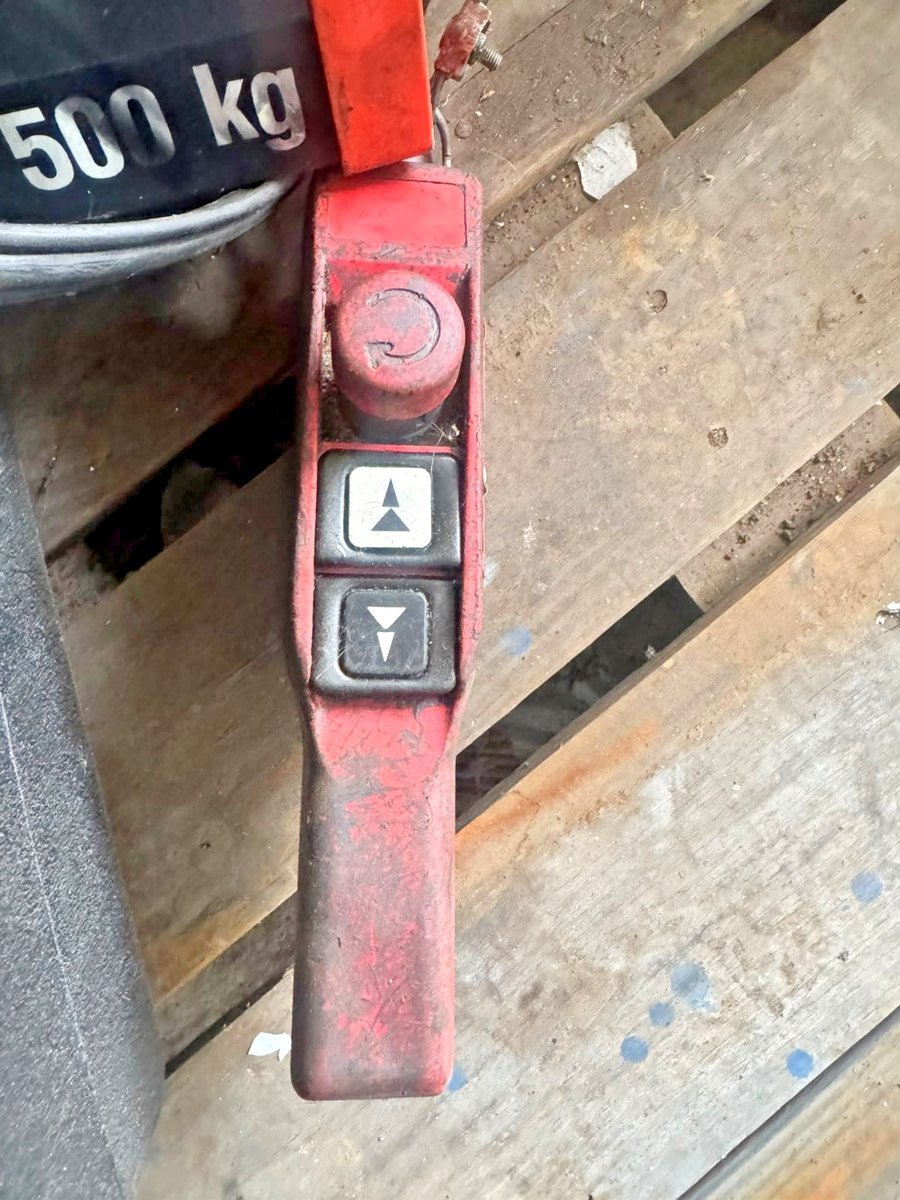

Red pendant with up/down controls and emergency stop

Attached cables pictured

Condition

The hoist functions and works. It has scratches, dirt, paint wear and surface corrosion, particularly on the trolley wheels, fittings, hook and hook latch.

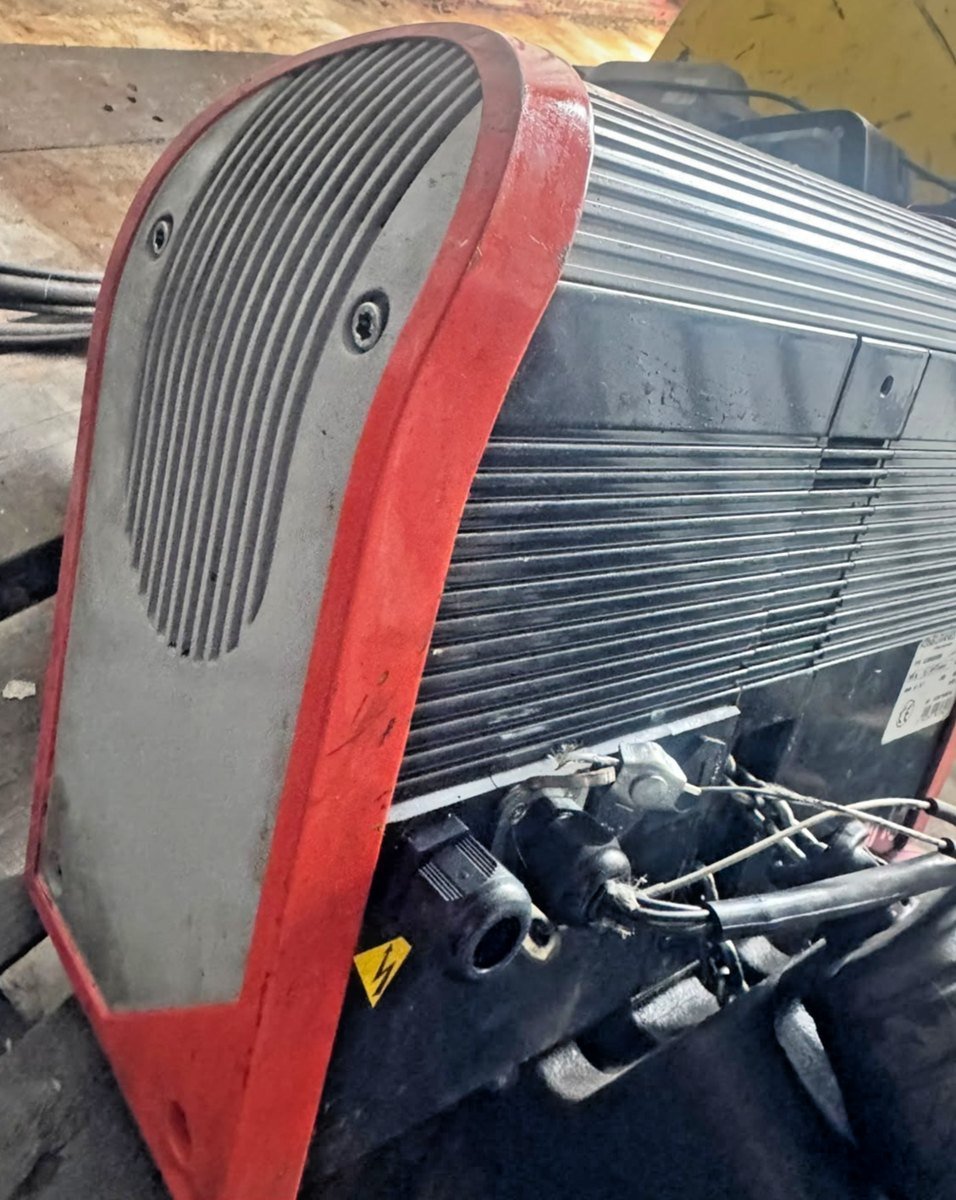

The hook safety latch is present. An open cable-entry fitting and exposed/frayed cable support strands are visible near the connections. These require checking and securing before installation.

Please examine all photographs for the actual condition and components supplied.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish examination status or suitability for immediate lifting service. A competent person should inspect the equipment, address the visible connection issues and complete appropriate electrical checks and examination before use.
