Morris SX3 250kg Electric Chain Hoist 400V 2 Speed With Pendant Control

Morris SX3 industrial electric chain hoist with 250kg lifting capacity , two lifting speeds, yellow pendant control and chain container.

Working used equipment with a fast lifting speed and a slower speed for controlled positioning.

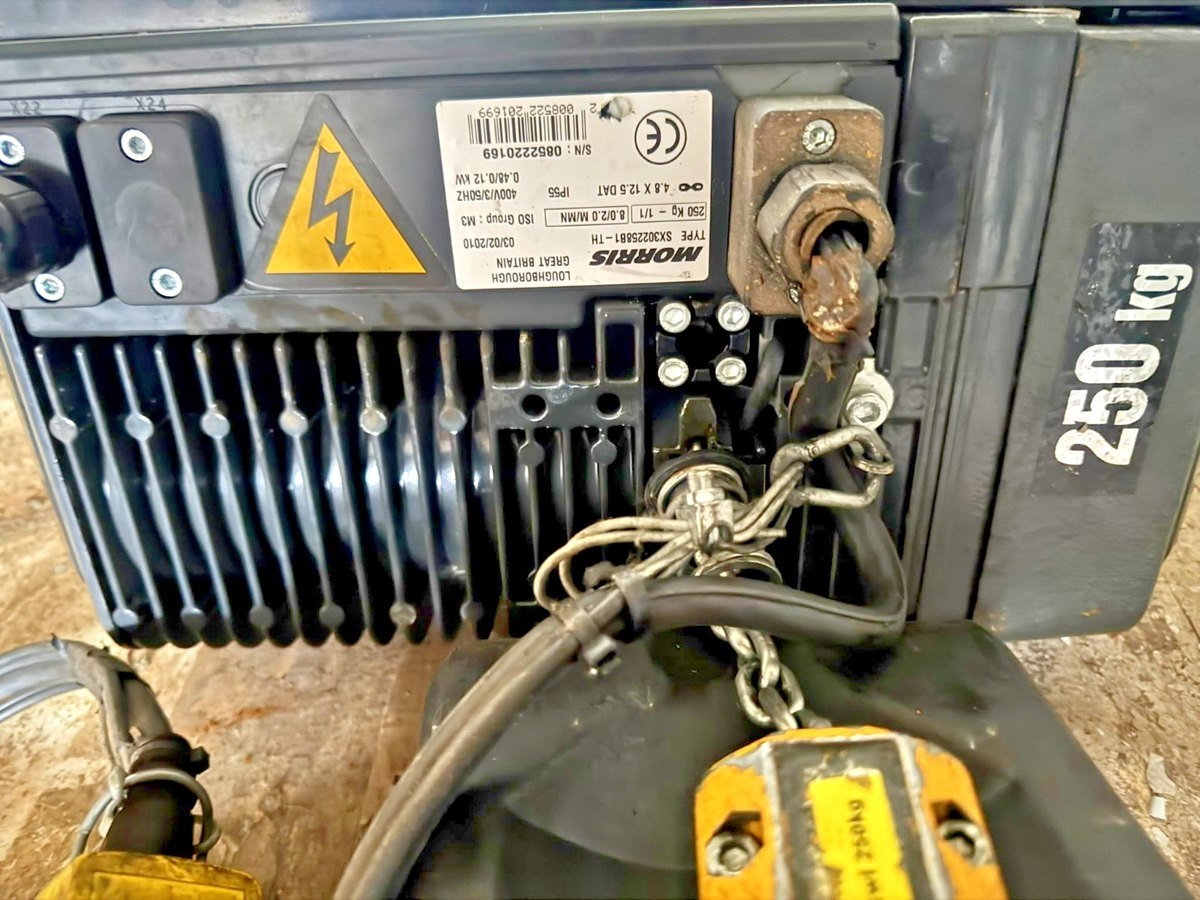

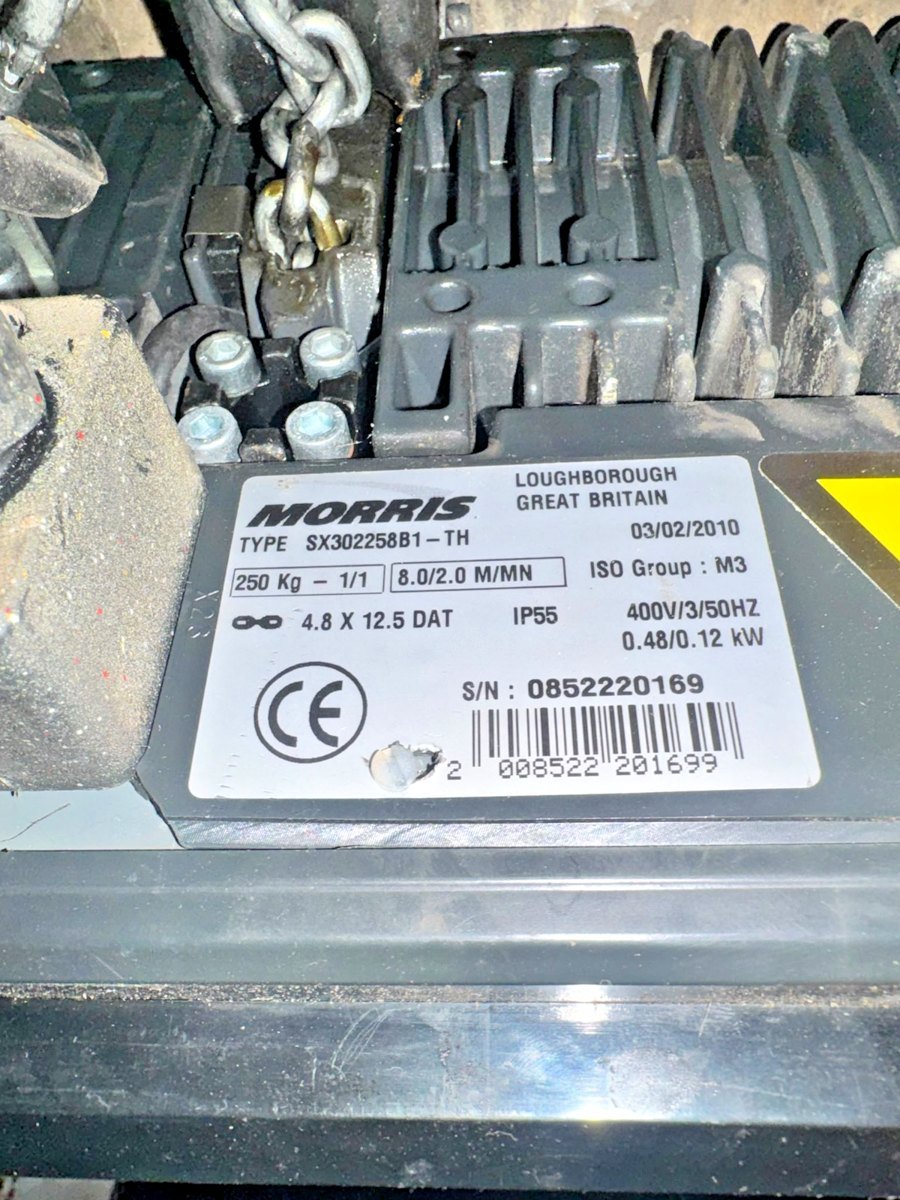

Specifications from the manufacturer’s plate

Manufacturer: Morris, Loughborough, Great Britain

Type: SX302258B1-TH

Maximum lifting capacity: 250kg

Chain arrangement: single fall, 1/1

Lifting speeds: 8 / 2 metres per minute

Supply: 400V, three phase, 50Hz

Motor power: 0.48 / 0.12kW

ISO classification: M3

Protection rating: IP55

Chain specification: 4.8 × 12.5 DAT

Serial number: 0852220169

Plate date: 03/02/2010

Actual lifting height: not measured

Included

Morris 250kg electric chain hoist

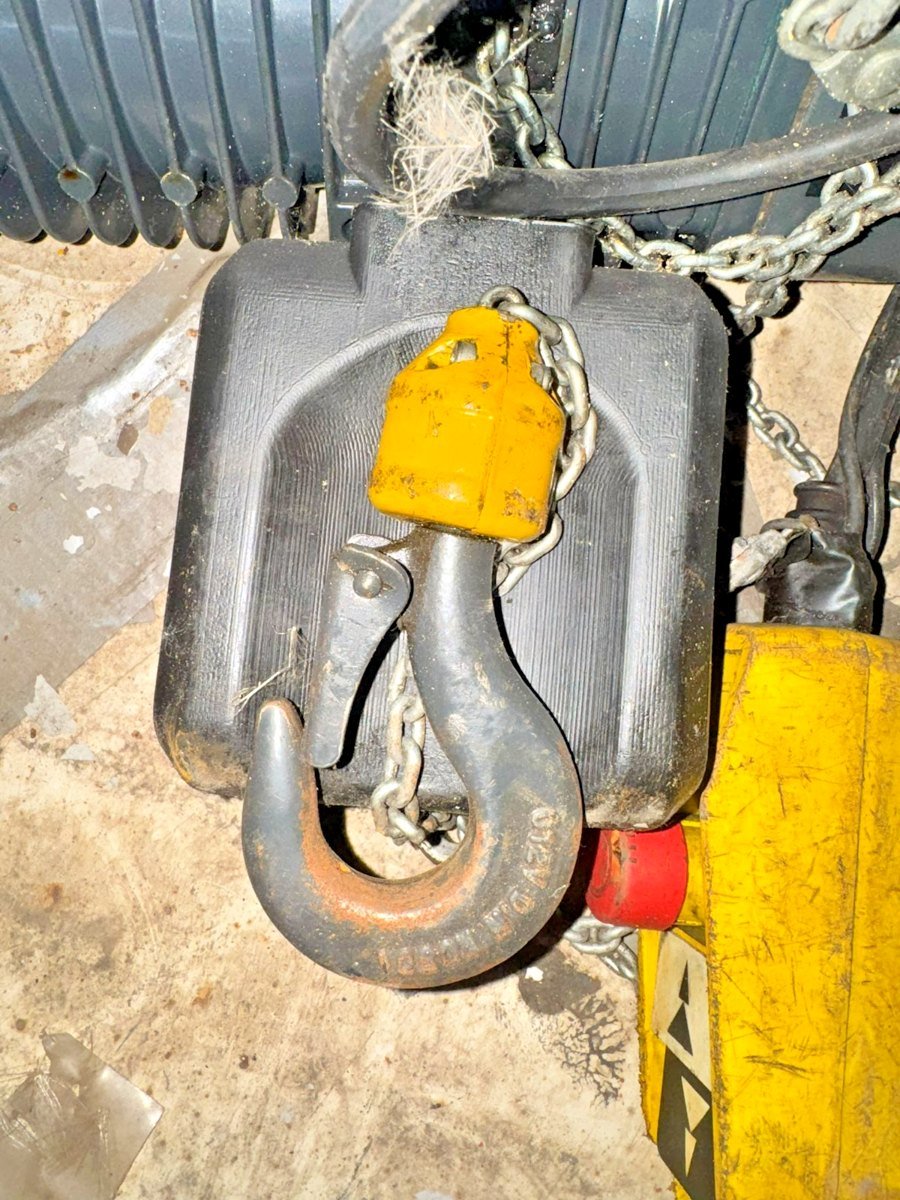

Load chain and lifting hook

Black chain container

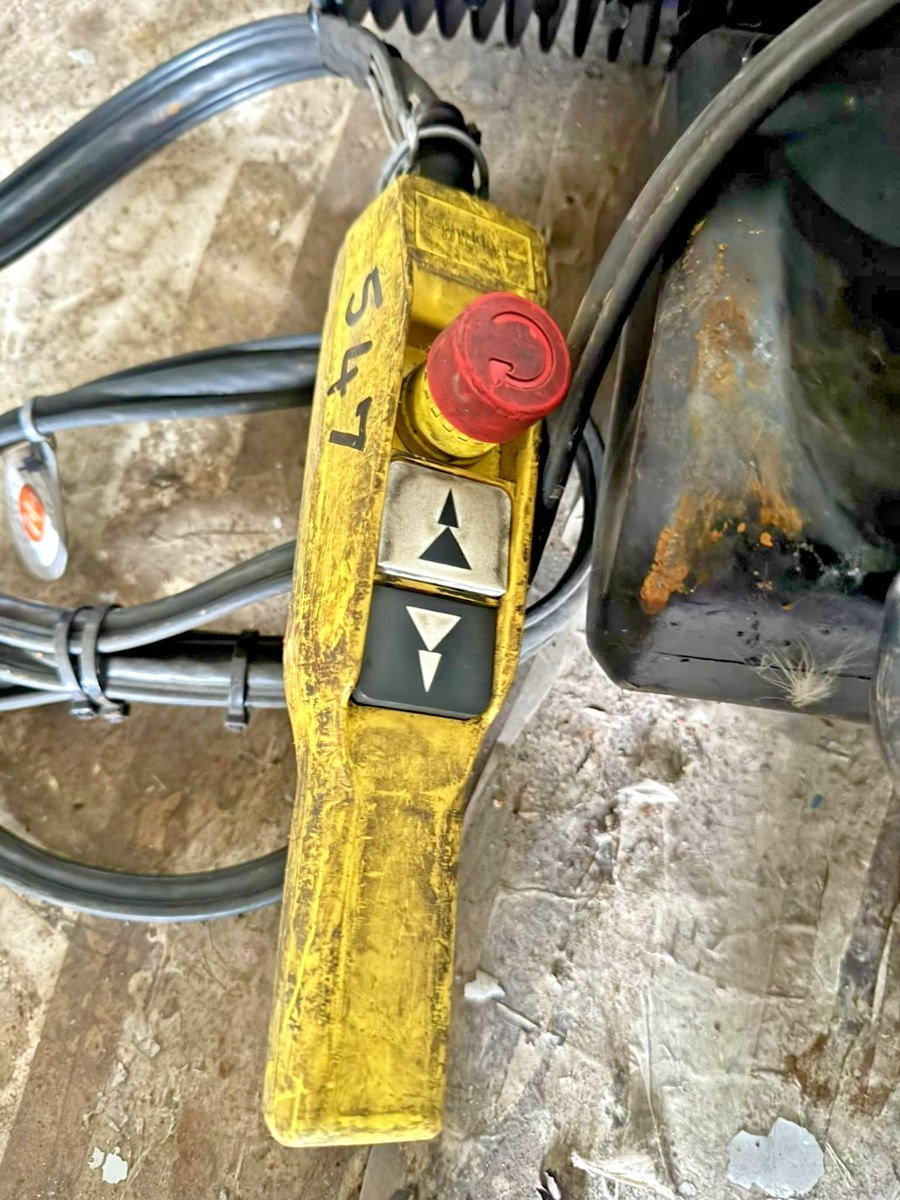

Yellow pendant with raise/lower controls and emergency stop

Attached cables shown

Condition

The hoist functions and works. It shows signs of industrial use, including scratches, dirt, paint wear and surface corrosion around the hook and fittings. The hook safety latch is present.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish certified lifting condition or suitability for immediate lifting service.

Before lifting use, a competent person should inspect the hoist, address the disclosed cable-entry and cable-covering issues, and complete appropriate electrical checks and examination.
