STAHL ST05 250kg Electric Chain Hoist 415V 2 Speed With Trolley & Pendant

STAHL ST05 industrial electric chain hoist, model ST0502-8/2 1/1, with manual trolley, pendant control, lifting hook and chain container.

Working used equipment with two lifting speeds for lifting and controlled positioning. Manufactured in Germany in September 2011.

Specifications from the manufacturer’s plate

Model: ST0502-8/2 1/1

Serial number: 3044086

Manufacture date: September 2011

Capacity in the pictured single-fall configuration: 250kg

Single-fall lifting speeds: 8 / 2 metres per minute

Plate also lists 500kg at 4 / 1 metres per minute in a double-fall configuration; this is not the configuration offered

Supply: 415V, three phase, 50Hz

Control voltage: 48V

Classification: FEM 1Am / ISO M4

Hoist own weight stated on plate: 16kg, excluding additional equipment

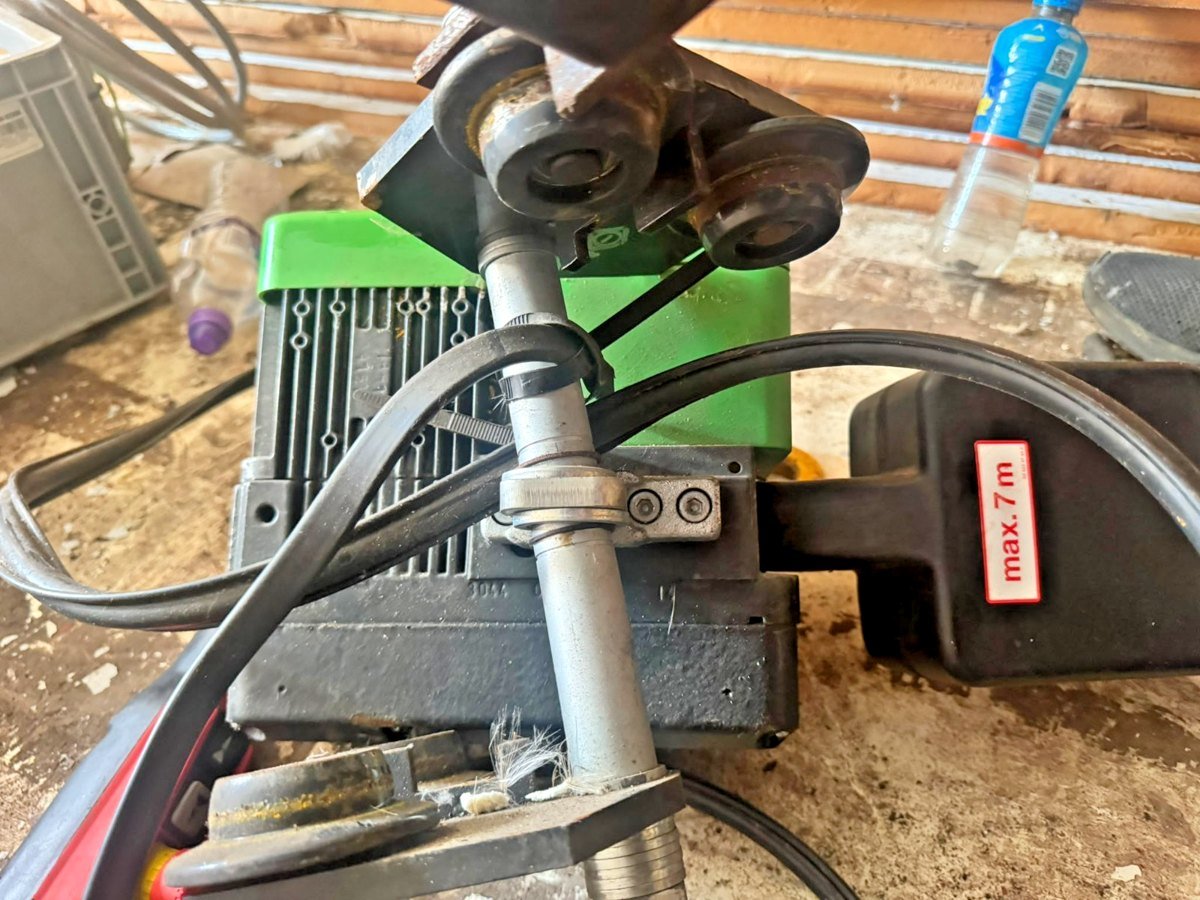

Chain container marked “max. 7m”; actual lifting height has not been measured

Included

STAHL electric chain hoist

Manual trolley assembly pictured

Lifting chain and bottom hook marked 250kg

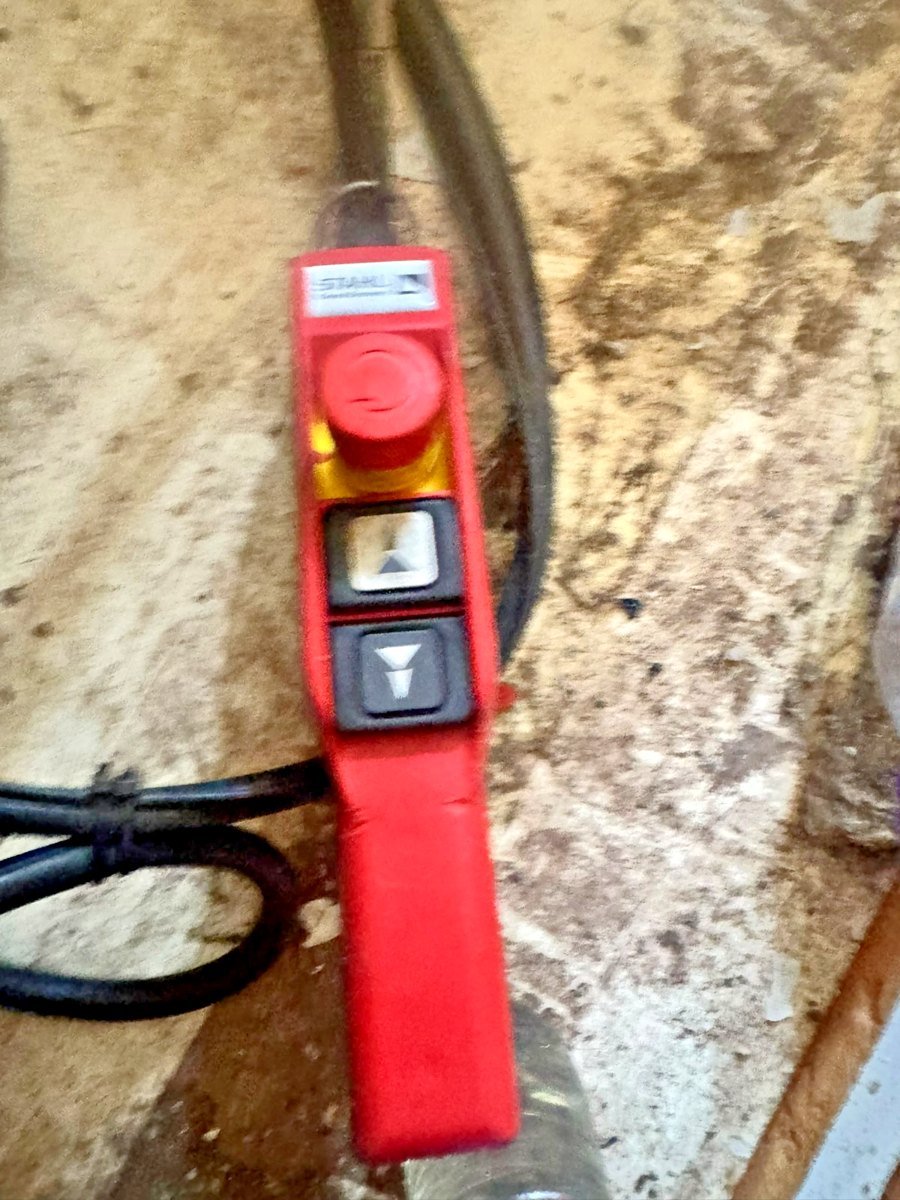

Red STAHL pendant with up/down controls and emergency stop

Black chain container

Attached cables pictured

Condition

The hoist functions and works. There are scratches, paint wear, dirt and surface corrosion, particularly around the trolley wheels and metal fittings.

A cut/frayed cable or support end is visible at the upper casing entry. Its function and condition require checking before installation. The bottom hook shows paint wear and corrosion, with its latch present.

Please review the photographs for the actual condition. No claim is made that the unit is ready for immediate lifting service.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish examination status. Inspection by a competent person, appropriate electrical checks and any necessary attention to the visible cable/support issue are required before use.
