STAHL ST10 500kg Electric Chain Hoist 415V 2 Speed Motorised Trolley & Pendant

STAHL CraneSystems ST10 electric chain hoist with motorised beam trolley, red pendant control and chain container. Working used industrial equipment with two lifting speeds and powered horizontal travel.

Manufactured in October 2018.

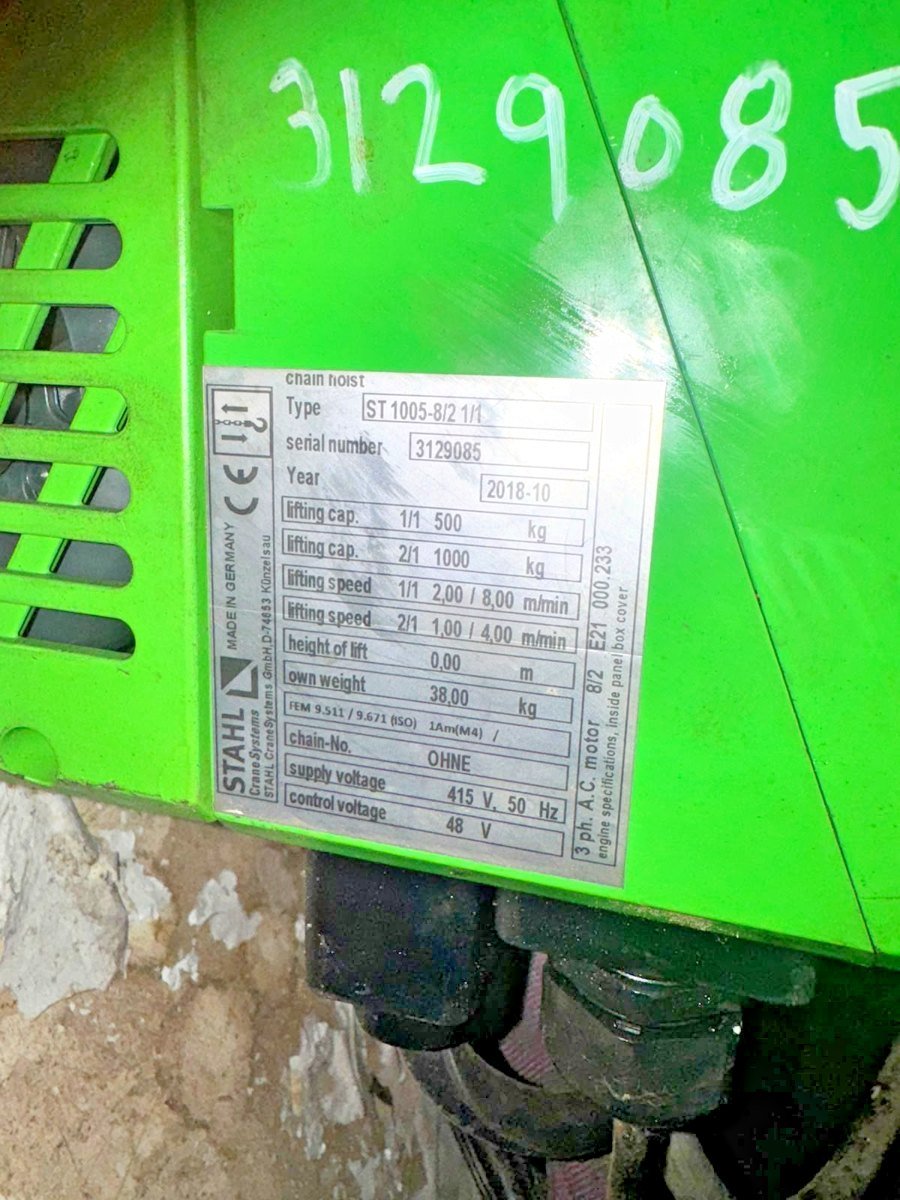

Specifications from the manufacturer’s plate

Manufacturer: STAHL CraneSystems, Germany

Type: ST1005-8/2 1/1

Serial number: 3129085

Manufacture date: 2018-10

Capacity: 500kg in single-fall configuration, 1/1

Plate also lists 1000kg for the alternative double-fall configuration, 2/1; this listing is for the 500kg configuration

Lifting speeds at 500kg: 8 / 2 metres per minute

Supply: 415V, three phase, 50Hz

Control voltage: 48V

Duty classification: FEM 1Am / ISO M4

Plate own-weight figure: 38kg

Actual lifting height and trolley beam-width range: not measured

Trolley travel speed: not verified

Included

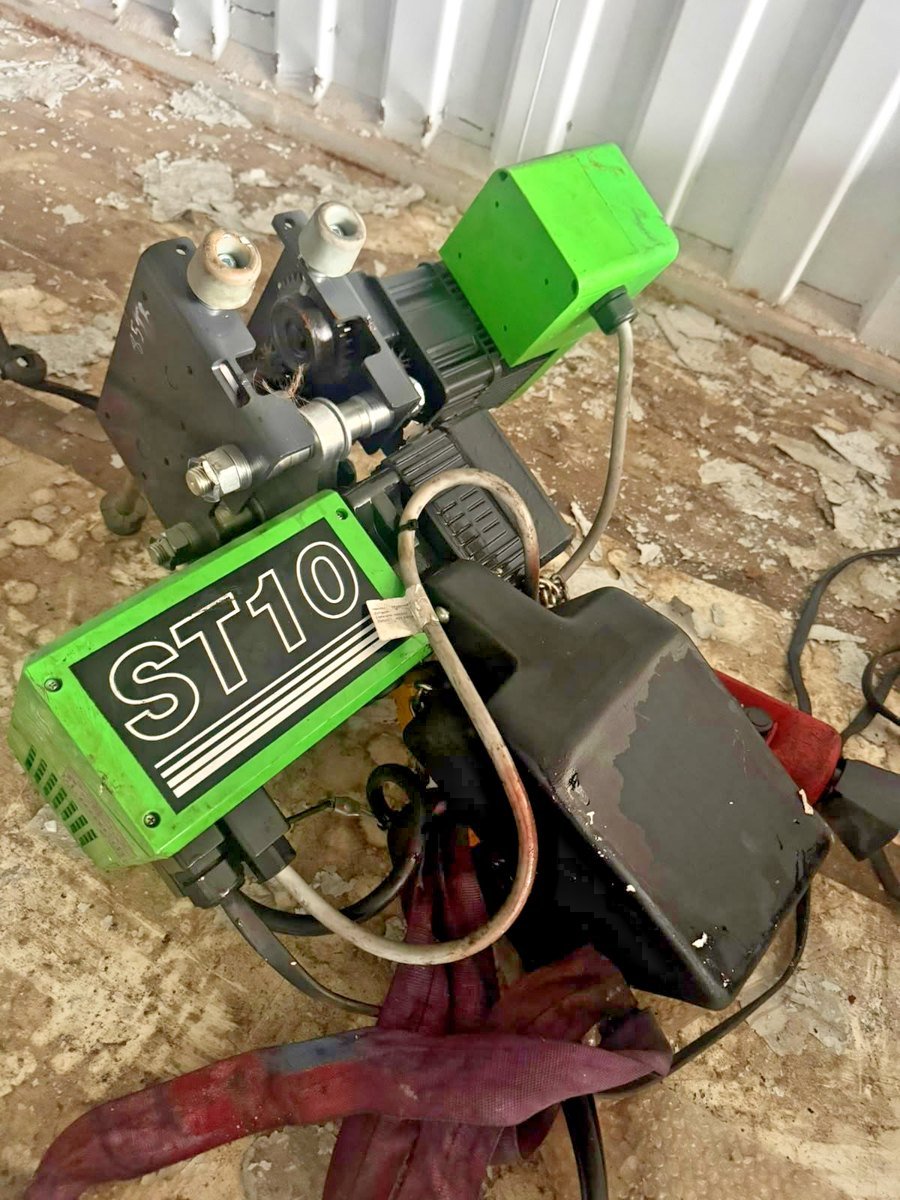

STAHL ST10 electric chain hoist

Attached motorised beam trolley

Load chain and associated lifting assembly

Black chain container

Red STAHL pendant with lifting and trolley travel controls

Attached cables shown

Condition

The equipment functions and works. It shows signs of industrial use, including scratches, dirt, paint wear and surface corrosion around the trolley wheels, gearing and fittings.

Please review all photographs for the exact condition and components supplied.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish examination status or suitability for immediate lifting service.
