STAHL ST10 ST1005 500kg Electric Chain Hoist 415V 2 Speed With Beam Trolley

Title: STAHL ST10 ST1005 500kg Electric Chain Hoist 415V 2 Speed With Beam Trolley

Description

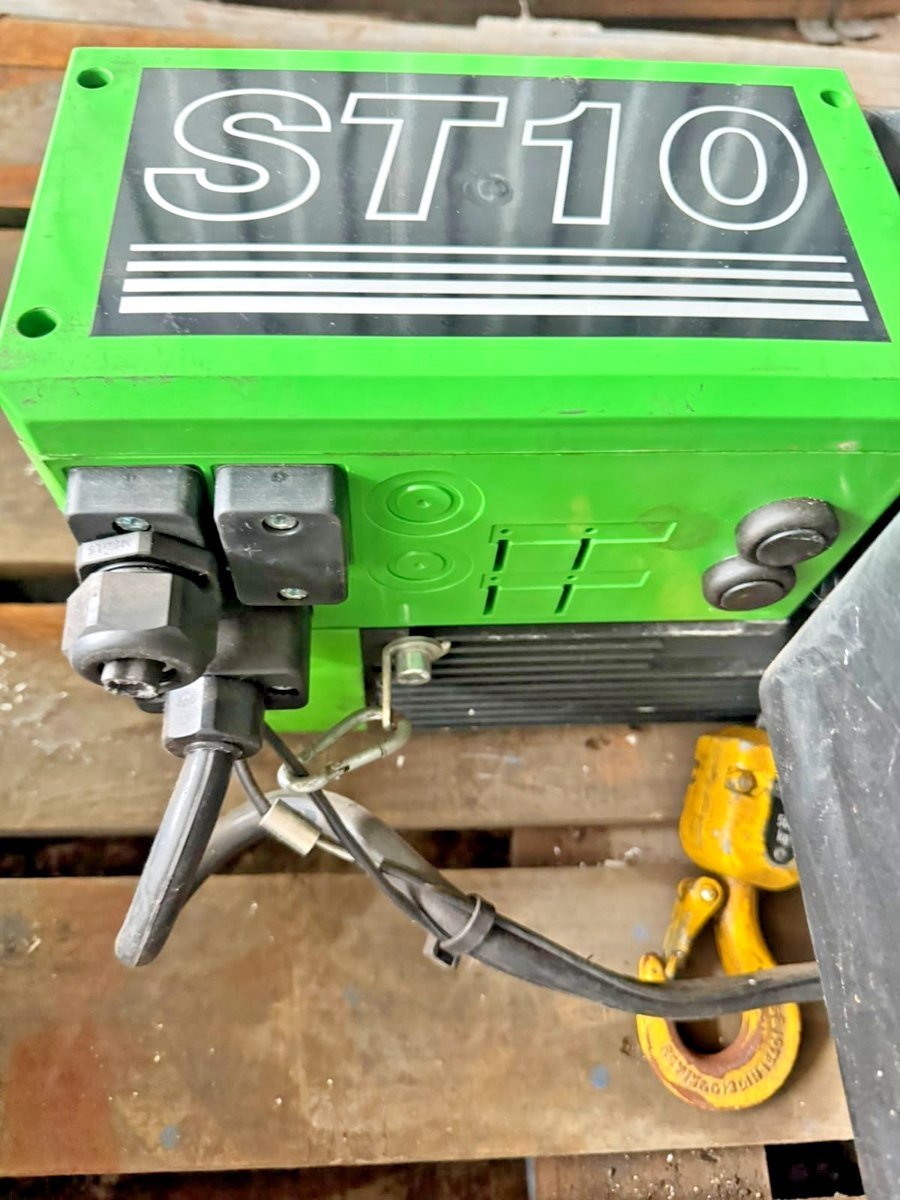

STAHL ST10 industrial electric chain hoist, model ST1005-8/2 1/1, with manual beam trolley, lifting hook and chain container.

Working used equipment with two lifting speeds for general lifting and slower positioning. Manufactured in Germany in October 2018.

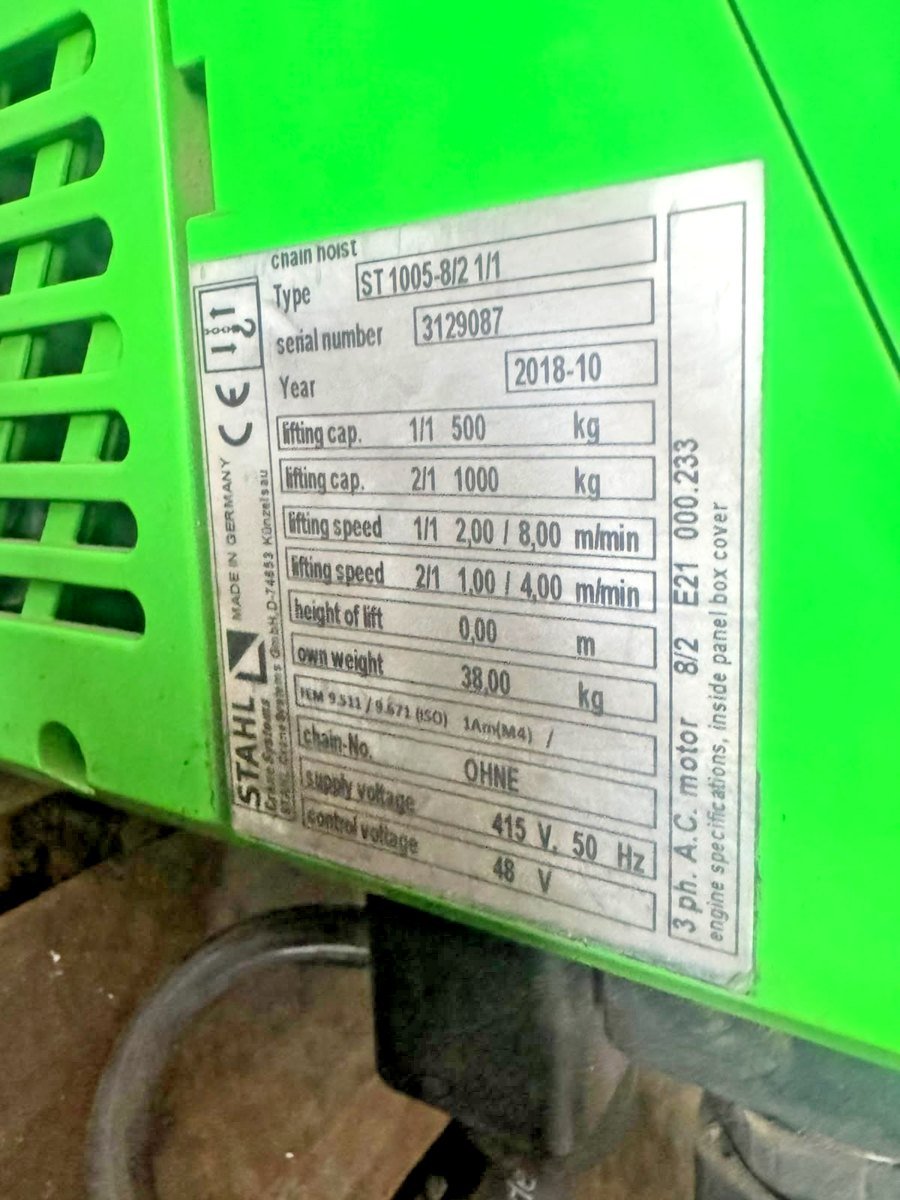

Specifications from the manufacturer’s plate

Model: ST1005-8/2 1/1

Serial number: 3129087

Manufacture date: October 2018

Capacity in the pictured single-fall configuration: 500kg

Lifting speeds: 8 / 2 metres per minute

Supply: 415V, three phase, 50Hz

Control voltage: 48V

Classification: FEM 1Am / ISO M4

Hoist own weight stated on plate: 38kg

Actual lifting height and trolley beam-width range: not measured

The plate also lists 1000kg capacity at 4 / 1 metres per minute for a double-fall configuration. This sale is for the pictured 500kg single-fall configuration.

Included

STAHL ST10 electric chain hoist

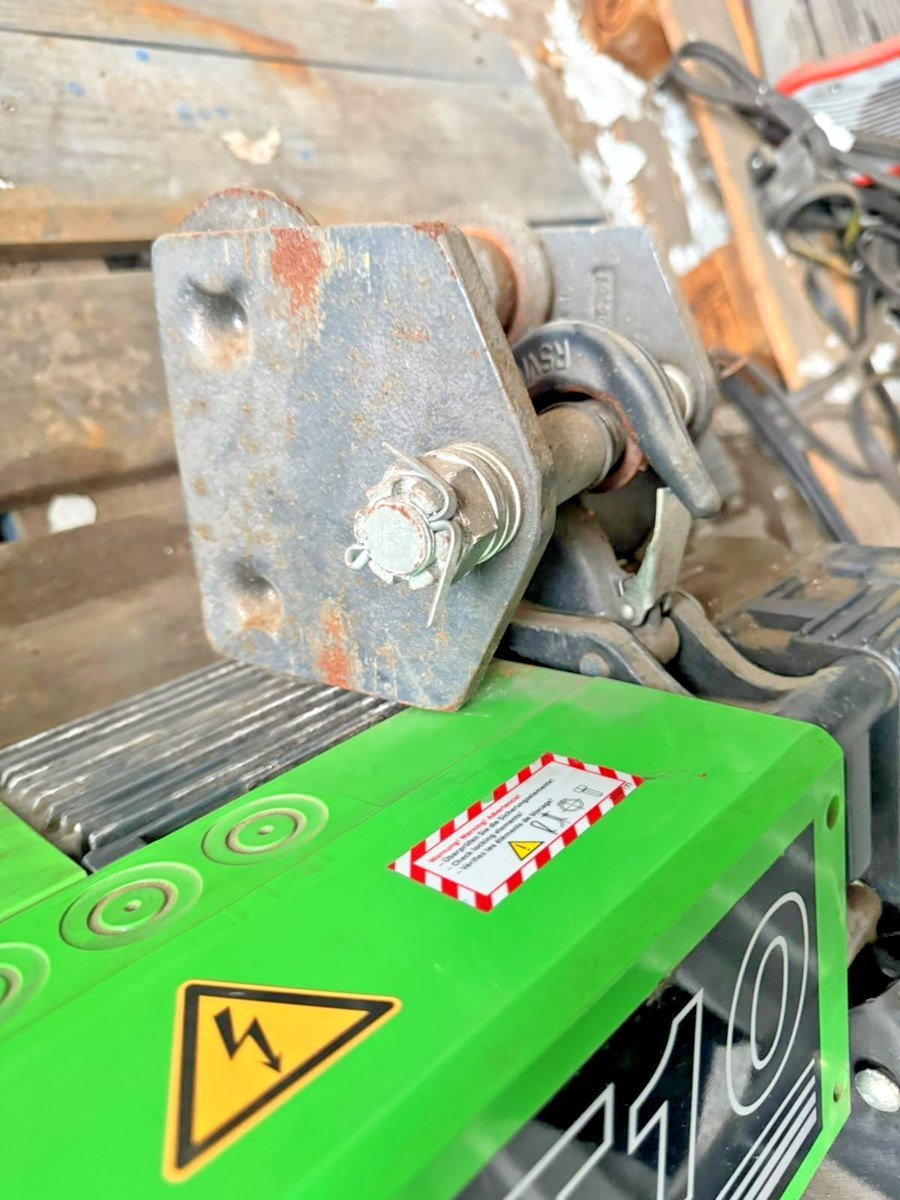

Manual beam trolley pictured

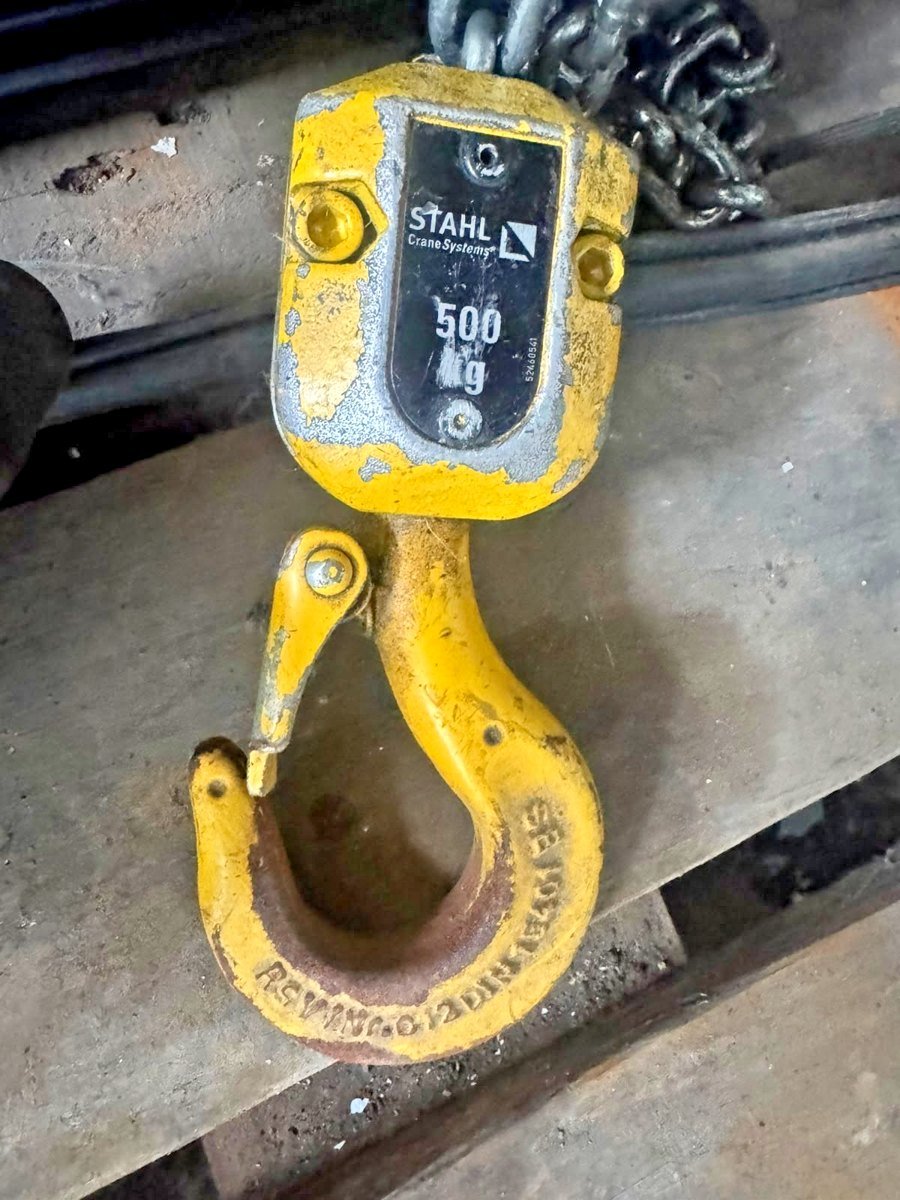

Lifting chain and bottom hook

Black chain container

Attached cable sections pictured

Condition

The hoist functions and works. There are scratches, dirt, paint wear and surface corrosion on the trolley wheels and metal fittings. Hook safety latches are visible.

A cable has been cut close to its entry gland, leaving a short end. This requires suitable reconnection and electrical checks before commissioning. The chain container has scuffs and worn labels.

The container’s chain-capacity chart does not establish the actual lifting height. 3M approx

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish examination status or suitability for immediate lifting service. A competent person should inspect the equipment and complete the necessary electrical checks and thorough examination before use.
