STAHL ST5025 2 Ton Electric Chain Hoist Motorised Trolley 415V 6M chain, working

STAHL Crane Systems electric chain hoist with motorised beam trolley and yellow pendant controller, supplied as pictured.

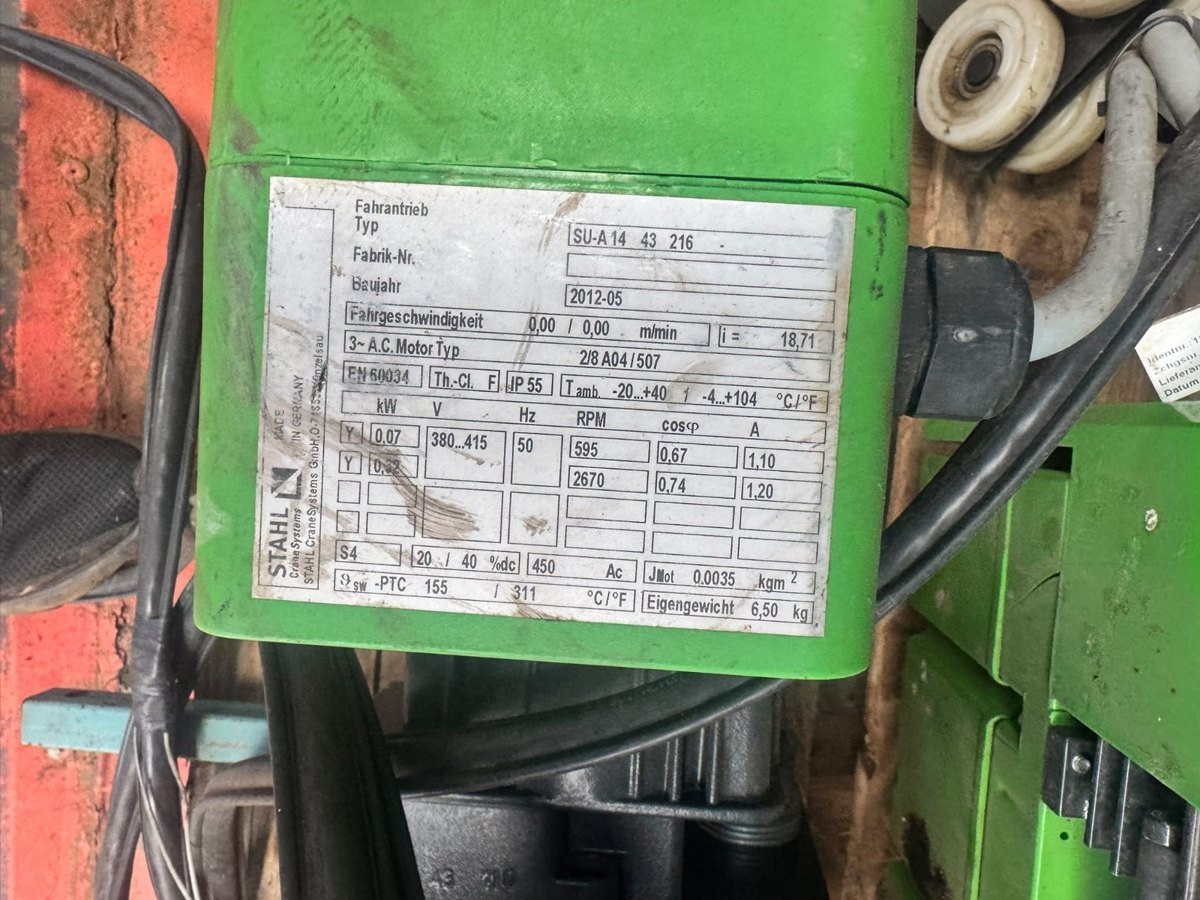

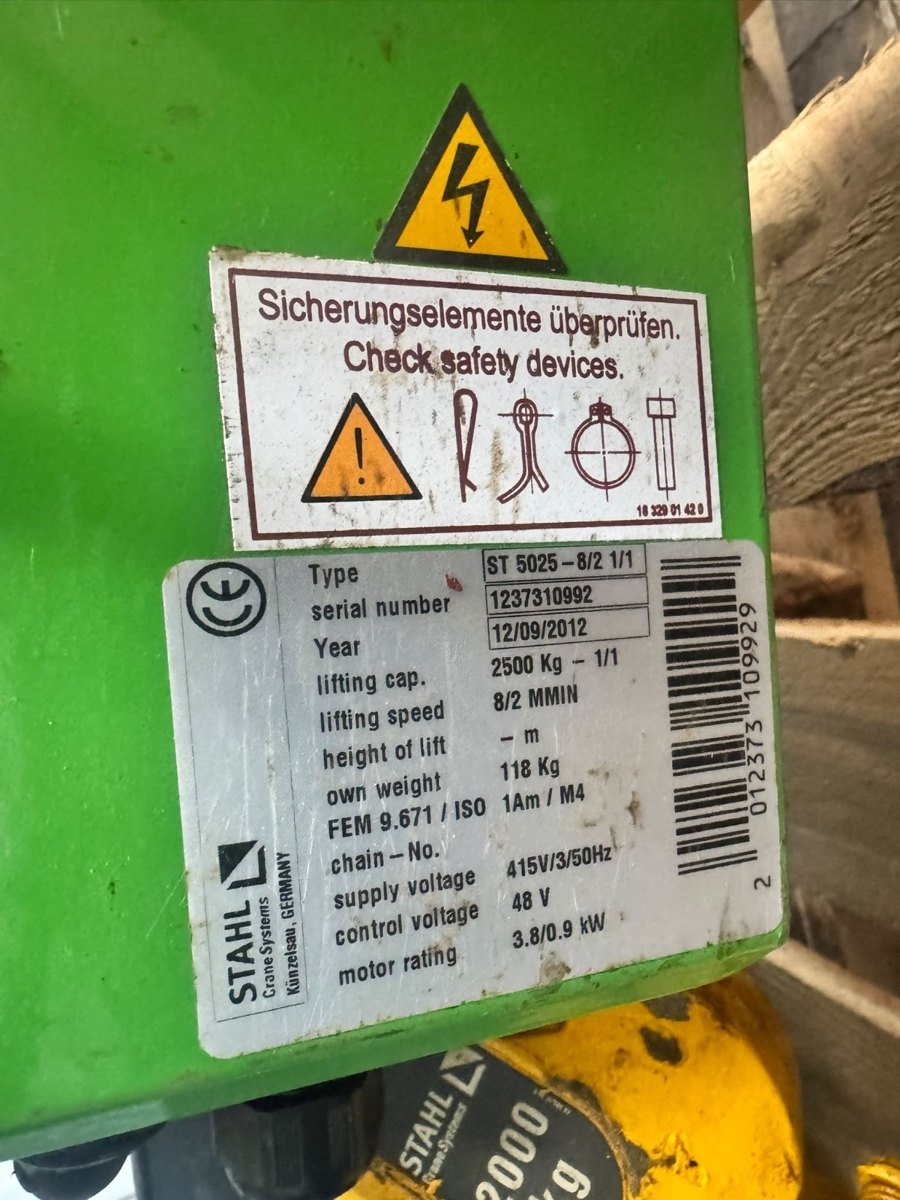

Specifications — from the identification plates: • Manufacturer: STAHL Crane Systems, Germany • Hoist type: ST 5025-8/2 1/1 • Marked lifting capacity: 2500kg / 2.5 tonnes • Serial number: 1237310992 • Manufacture date: 12 September 2012 • Two-speed lifting: 8 / 2 metres per minute • Supply: 415V, three-phase, 50Hz • Control voltage: 48V • Hoist motor rating: 3.8 / 0.9kW • Duty classification: FEM 1Am / ISO M4 • Hoist plate lists own weight: 118kg; total assembly weight has not been measured • Trolley drive type: SU-A14 • Trolley motor protection: IP55 • Chain 6M

Used industrial condition with scratches, chipped paint, dirt and rust on the trolley wheels and other metal components. Loose cable ends are visible; wiring condition and completeness have not been verified.

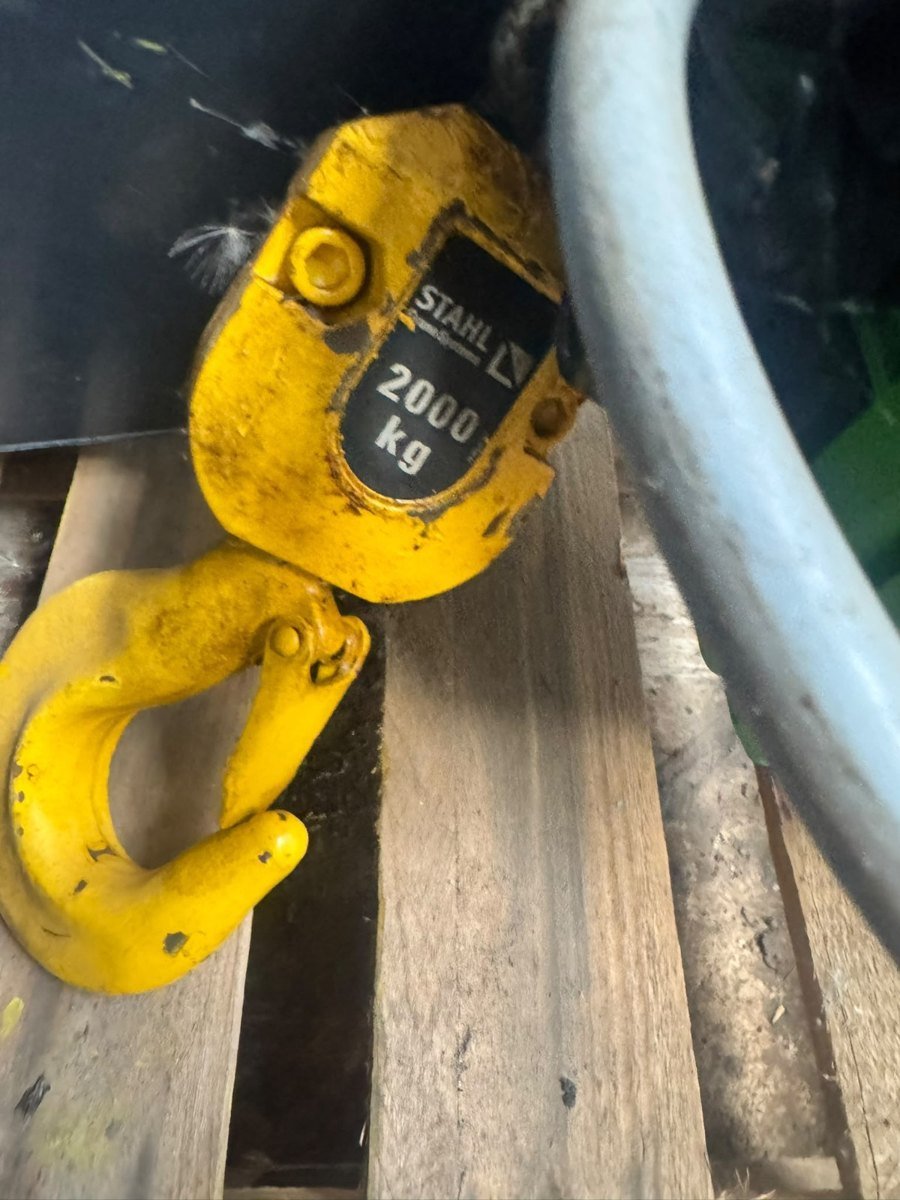

Includes the hoist body, motorised trolley, pendant controller and attached cabling shown. Load chain and bottom hook are not clearly shown in these photographs, so their inclusion and completeness must be confirmed before purchase. Other equipment in the background is excluded.

Supplied untested. Electrical operation, trolley travel, brakes, limit switches and lifting performance have not been verified. No certification, test certificate or current inspection report is supplied.

The marked capacity is the manufacturer’s rating, not confirmation of its current safe lifting capability. Requires assessment by a competent lifting-equipment specialist, electrical checks and any necessary repairs and inspection/testing before use.
