Tiger PROLH 10 Ton Lever Hoist Chain Block Ratchet Lifting Hoist 10T

Tiger PROLH Professional 10 Tonne Lever Hoist / Ratchet Chain Hoist

Heavy-duty Tiger Lifting professional lever hoist suitable for industrial lifting, pulling and positioning applications.

This is a

used item

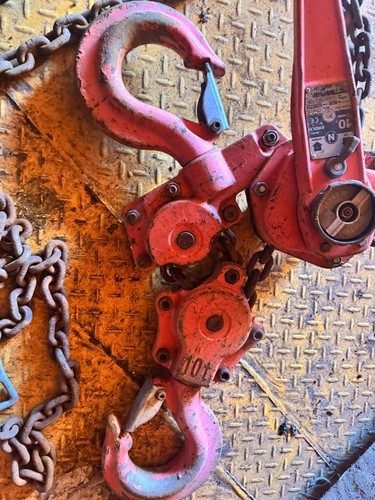

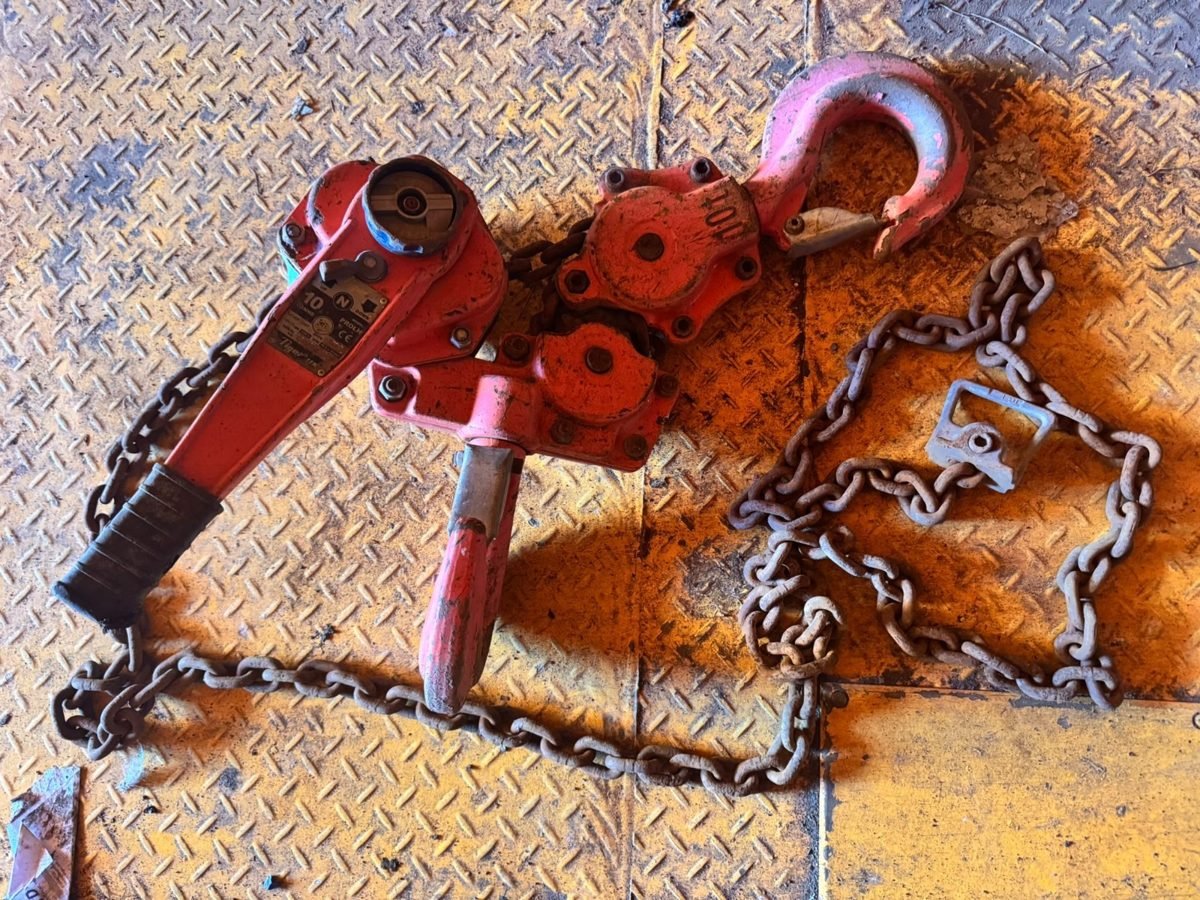

and shows clear signs of previous industrial use, including surface wear, scratches, paint loss, dirt and surface corrosion to the chain and other areas. Please study all photographs carefully as they form part of the description.

Specification

Manufacturer:

Tiger Lifting

Range / Model:

PROLH Professional Lever Hoist

Capacity / WLL:

10 tonnes

Equivalent Tiger product code:

PLH-1000

Type: Manual ratchet lever hoist

Load chain diameter:

10 mm

Number of load-chain falls:

3

Standard height of lift for this model when supplied new:

1.5 m

Operating effort: Approx.

47 kg

Standard model weight: Approx.

46 kg at 1.5 m HOL

Additional chain weight: Approx.

6.5 kg per additional metre of lift

Finish: Red

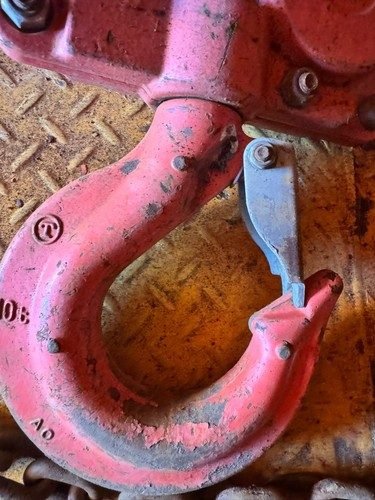

Top and bottom load hooks with safety catches

Direction selector for raising / lowering

Heavy-duty steel construction

Tiger lists the current 10-tonne PROLH at approximately

379 × 360 × 630 mm

across the principal A/B/C dimensions, with further dimensions D 195 mm, E 108 mm, F1 54 mm and F2 87 mm. These are manufacturer specifications for the model rather than measurements taken from this particular used unit.

UK mainland pallet delivery: £80 + VAT (£96 including VAT)
