Verlinde VL2 500kg Electric Chain Hoist 415V 2 Speed With Pendant Control

Verlinde VL2 electric chain hoist with pendant control, chain container and suspension bracket. Working used unit, configured for a maximum lifting capacity of 500kg using two chain falls .

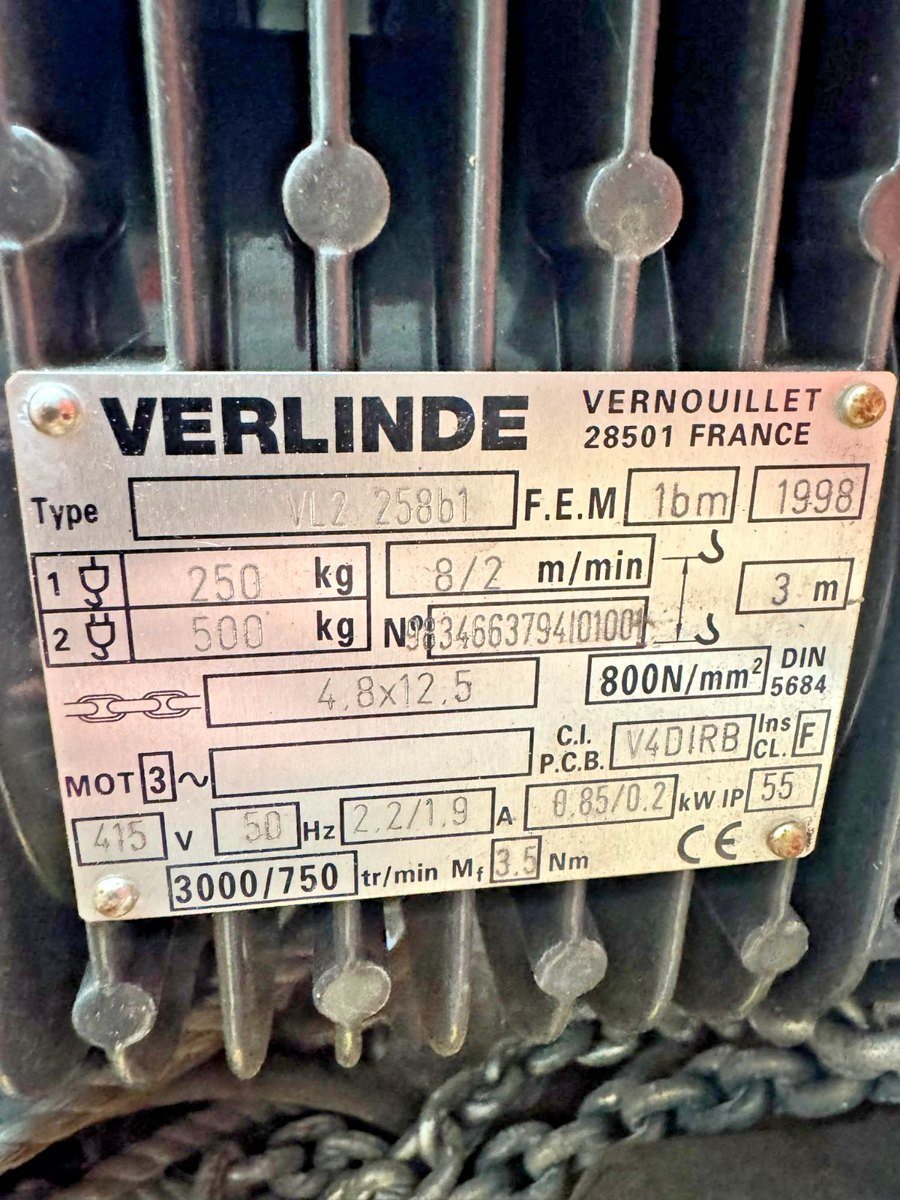

Specifications from the manufacturer’s plate:

Manufacturer: Verlinde, France

Model/type: VL2 258b1

Year of manufacture: 1998

Capacity: 500kg double fall / 250kg single fall

Supply: 415V, three-phase, 50Hz

Two-speed motor: 0.85/0.2kW

Rated current: 2.2/1.9A

Plate speed marking: 8/2 metres per minute; hook speed depends on chain configuration

Plate lift marking: 3 metres; actual available travel has not been measured

Load chain: 4.8 × 12.5mm

Duty classification: FEM 1bm

Protection rating: IP55

Insulation class: F

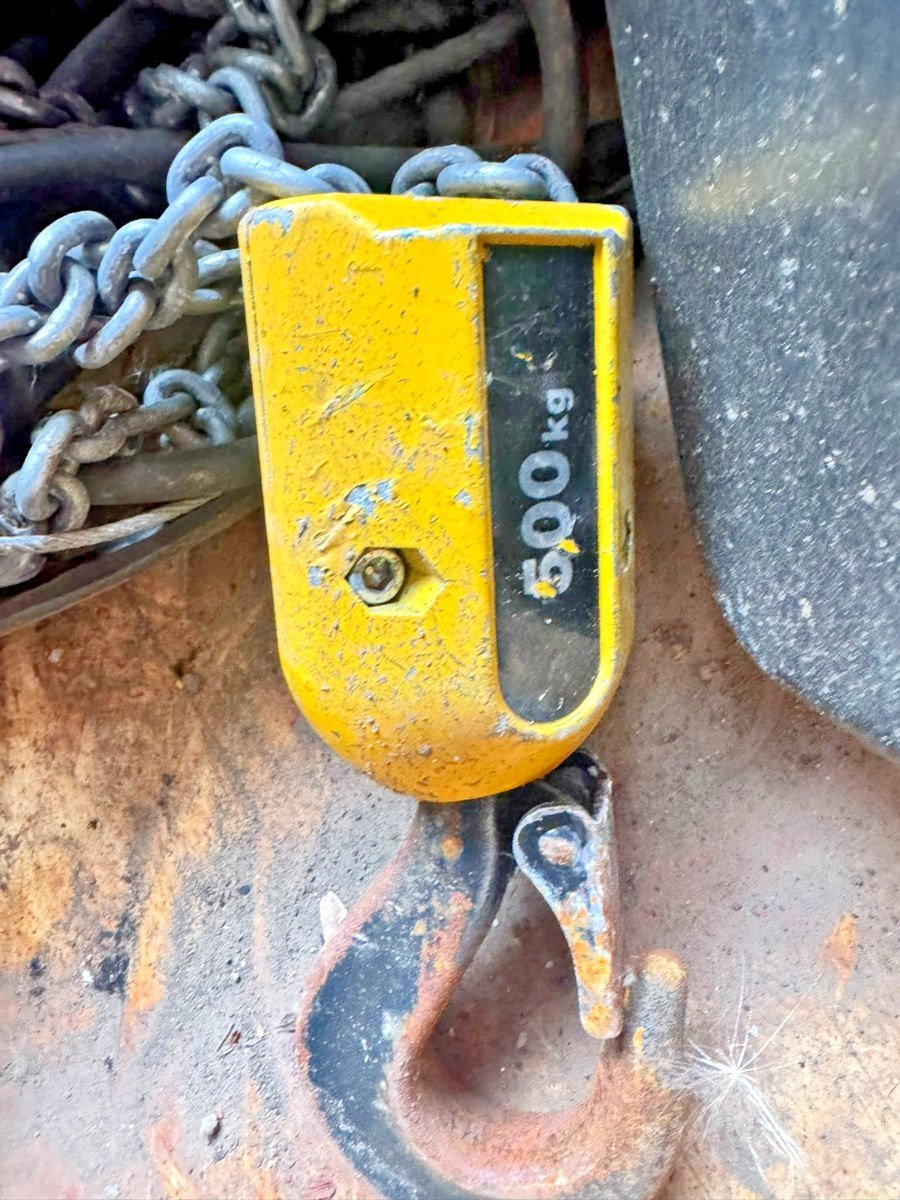

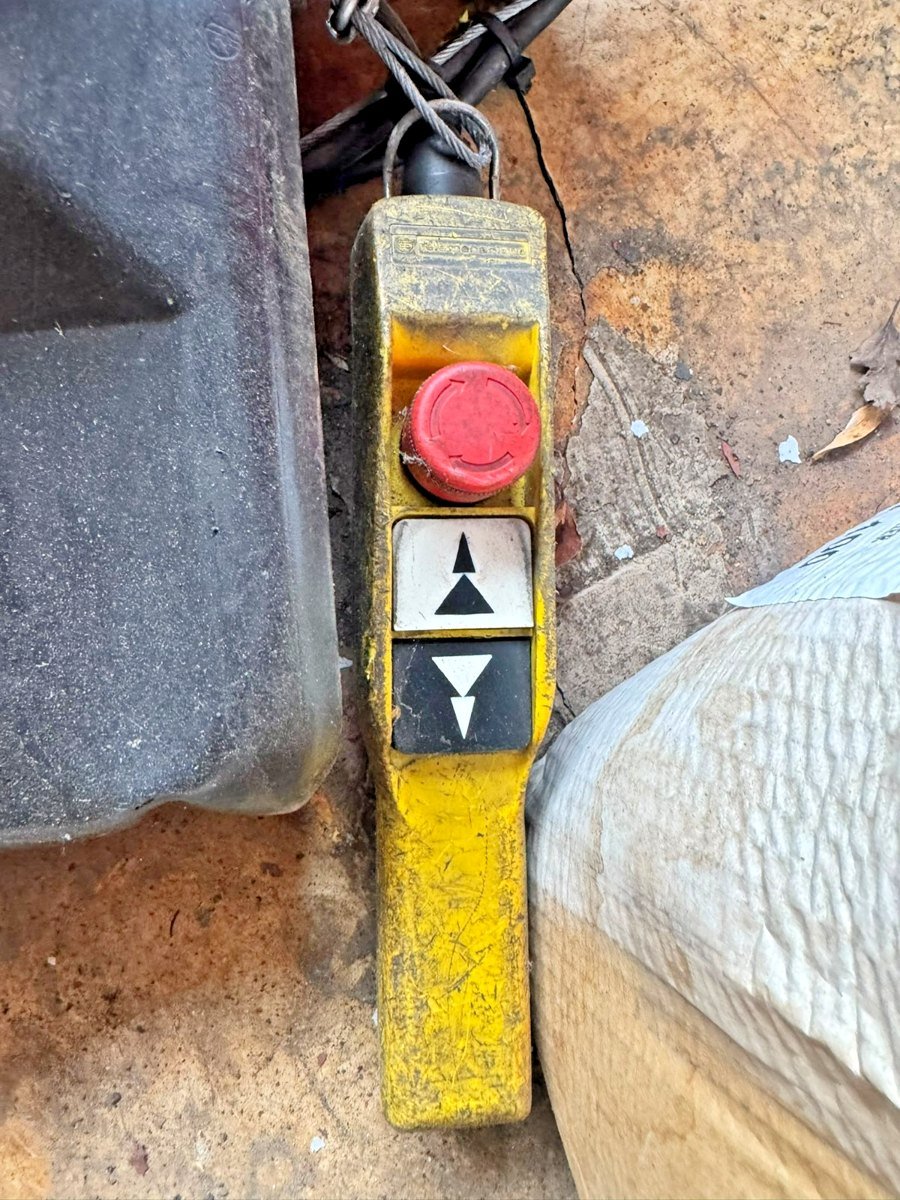

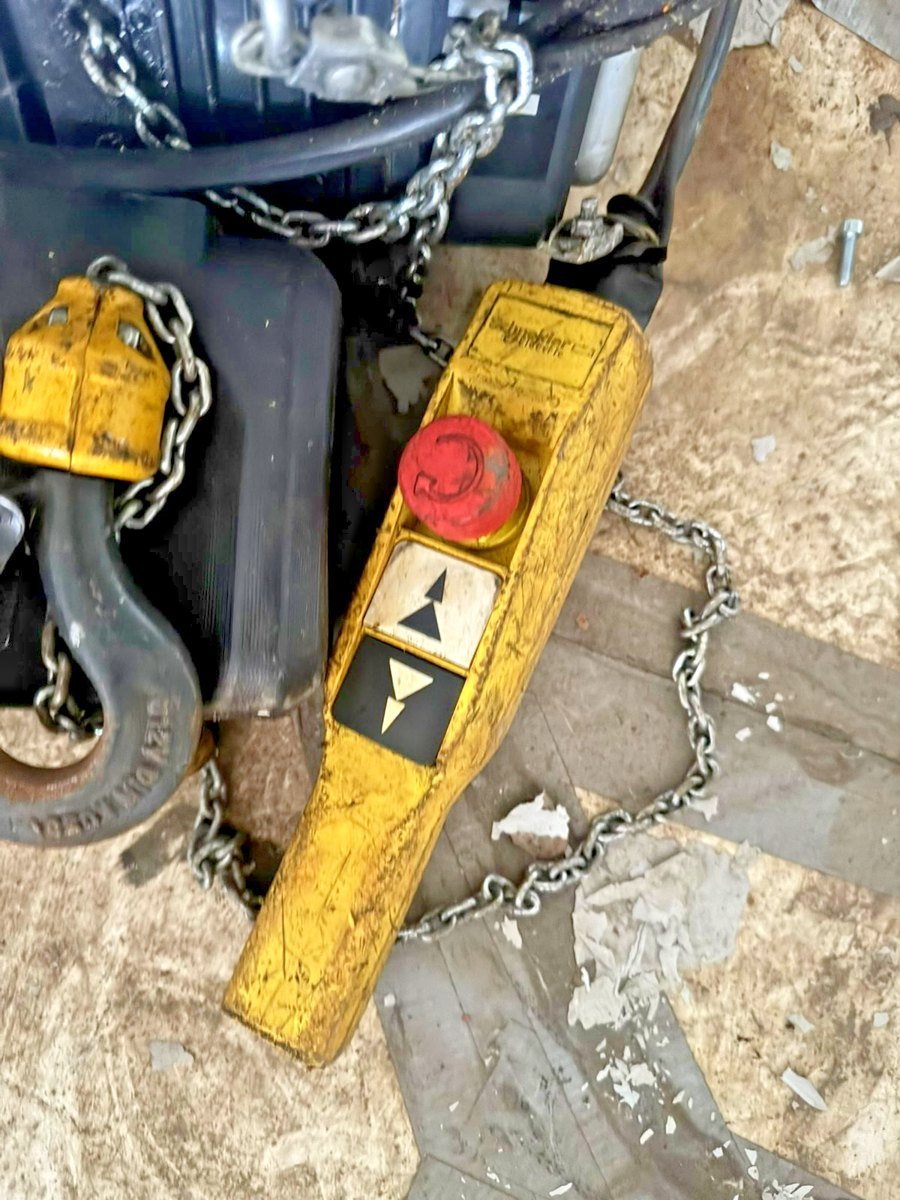

Included: Hoist, load chain, 500kg bottom block and hook, chain container, suspension bracket and pendant control with raise/lower buttons and emergency stop. No beam trolley is included.

Condition: Used industrial equipment with scratches, paint wear, dirt and surface corrosion, particularly around the hook and suspension fittings. The hook safety latch is present.

The hoist functions and works, but is currently disconnected. The electrical cable is cut, with inner conductors exposed, and an open cable-entry point is visible. These require proper reconnection, securing and electrical checks before operation.

Certification: No current LOLER thorough examination report or certification is supplied. Working status does not establish certified lifting condition. Before lifting use, the unit requires inspection by a competent person, attention to the disclosed electrical connections and the appropriate examination.
